Heating water treatment and filling

Heaty Ferriline No. 2

Heating water treatment and filling

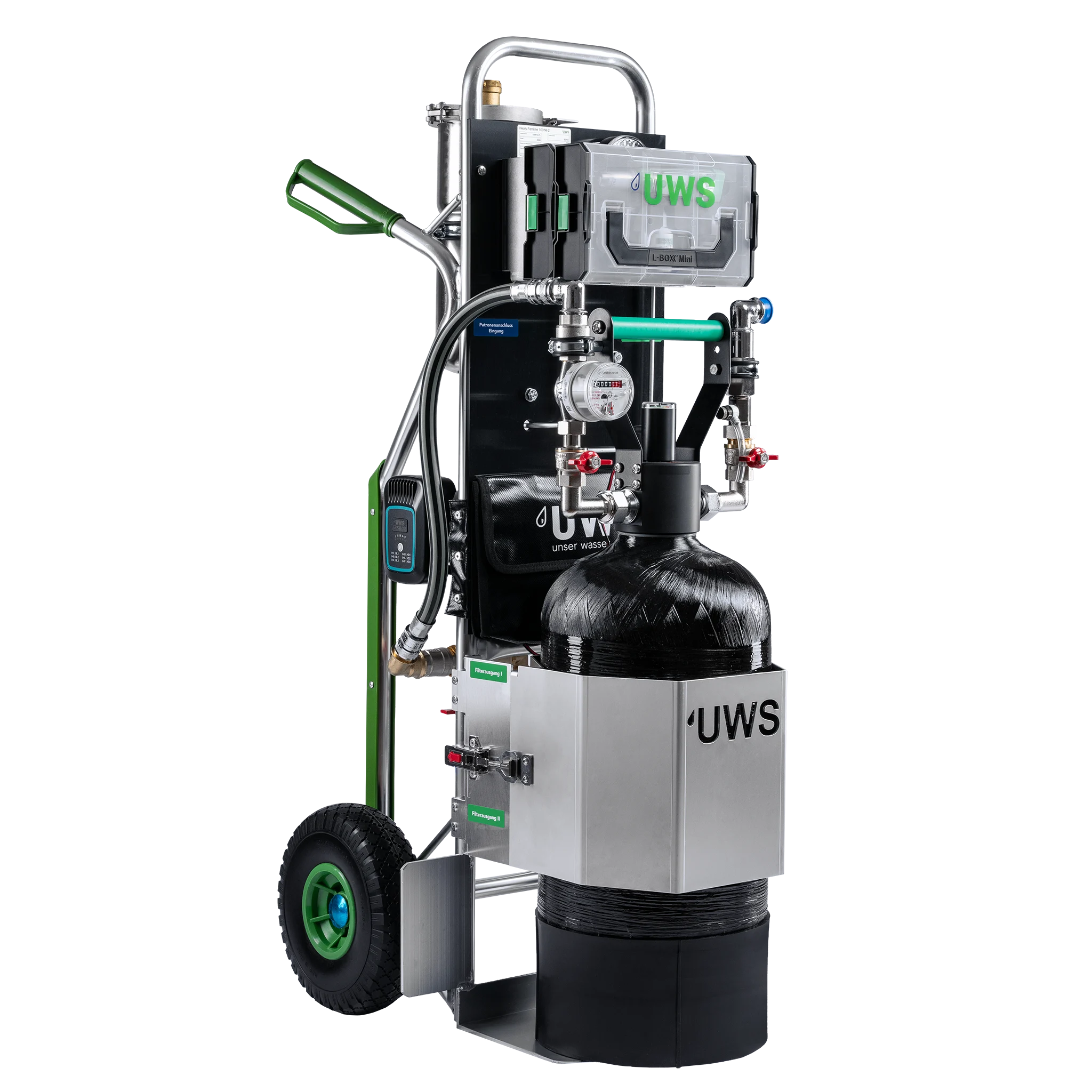

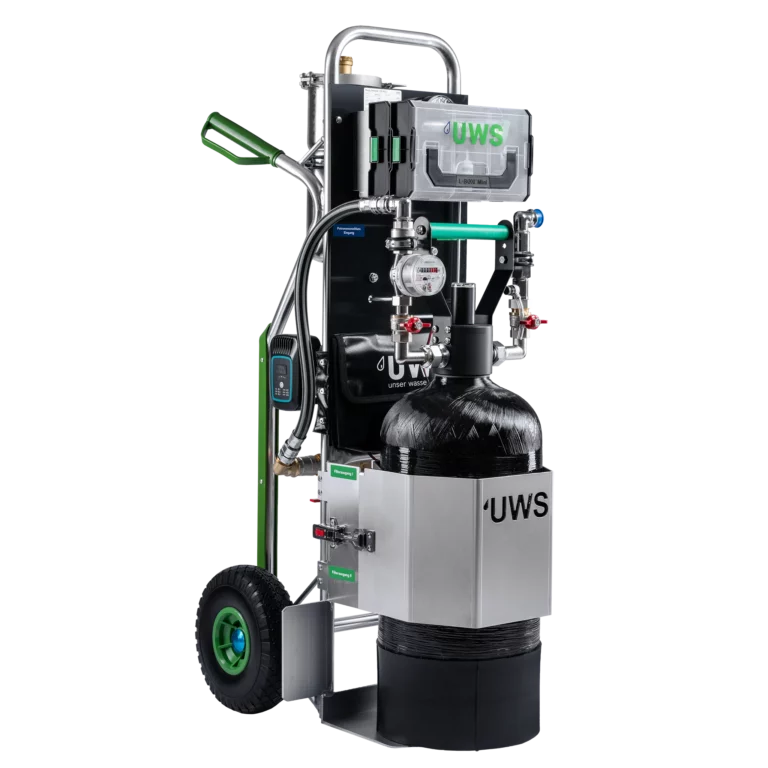

Heaty Ferriline No. 2

Art.-Nr. 100413-FL

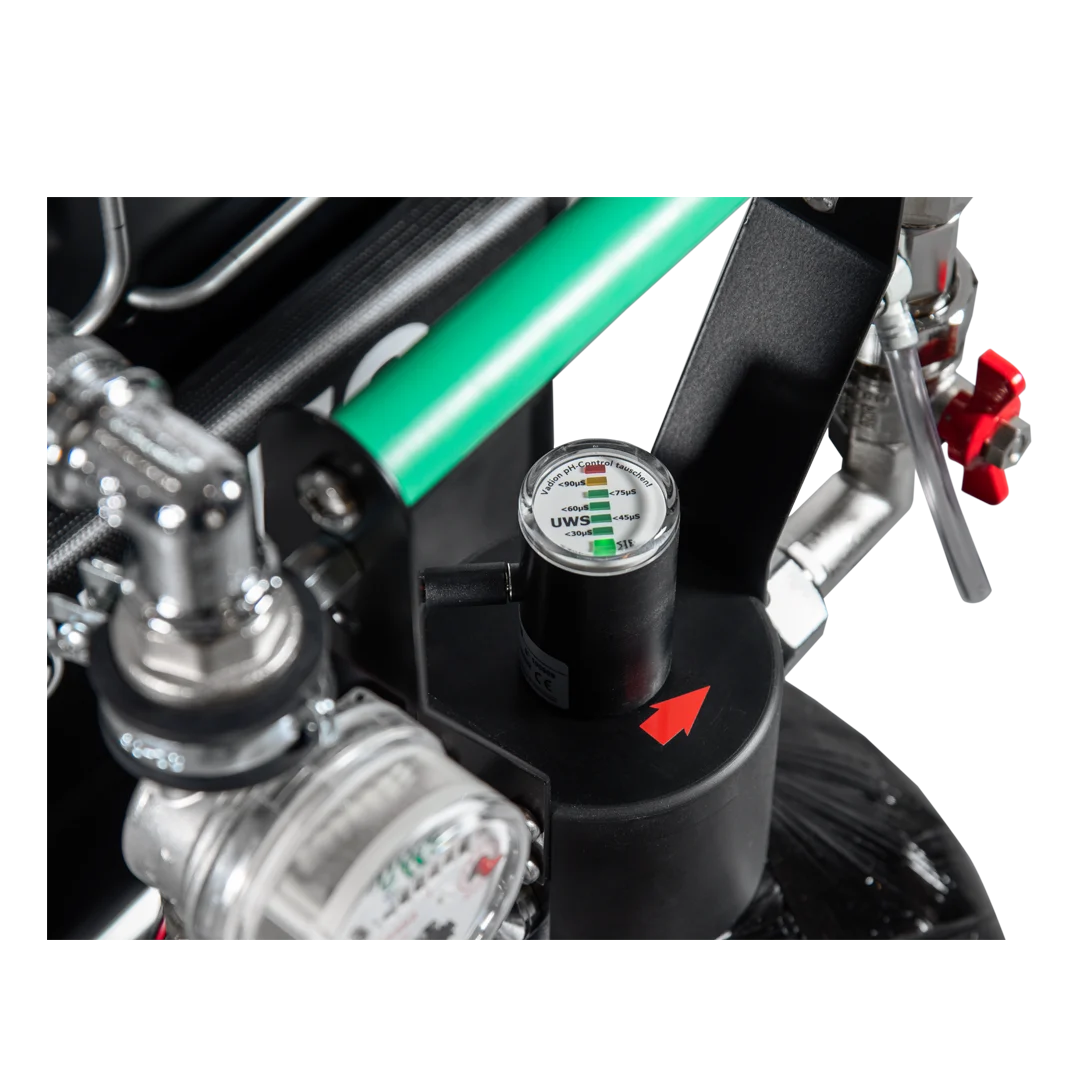

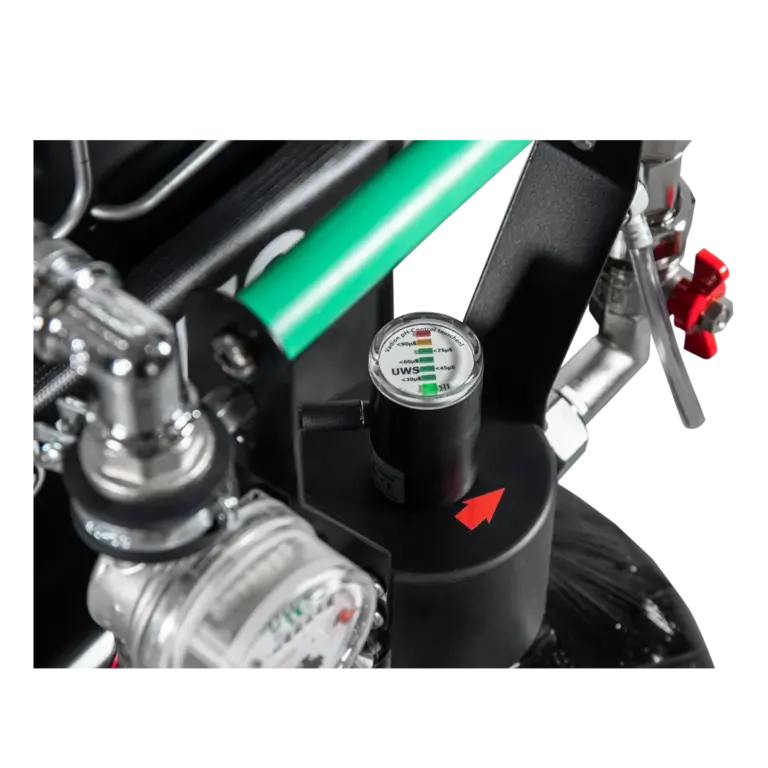

  • LED measuring cell indicates the depletion level of the conditioning resin
  • Pressure-independent flow regulator ensures value stability at the water outlet
  • High-quality connection hoses Quick connection to the heating system
  • Integrated hot water pump for system-independent work
  • Integrated MAGella twister5 powerful magnetic flux filter and fine filter
  • Filter capacity display indicates necessary filter replacement
Interested? Write to us or give us a call.
Make an appointment
Your advantages
Technical data
Scope of delivery
Downloads
  • Unique dual filter with maximum separation capacity
  • Now even more user-friendly and robust

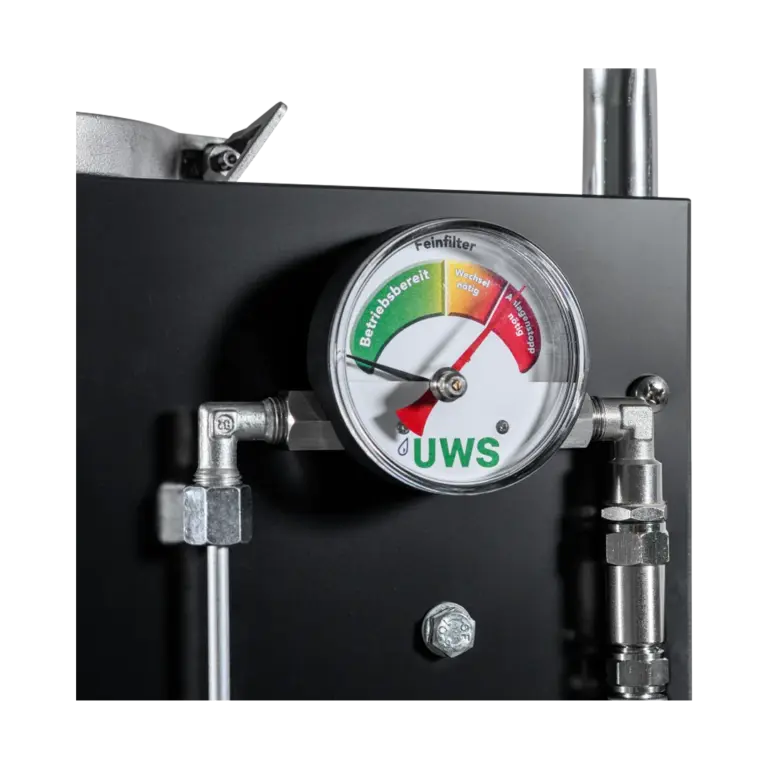

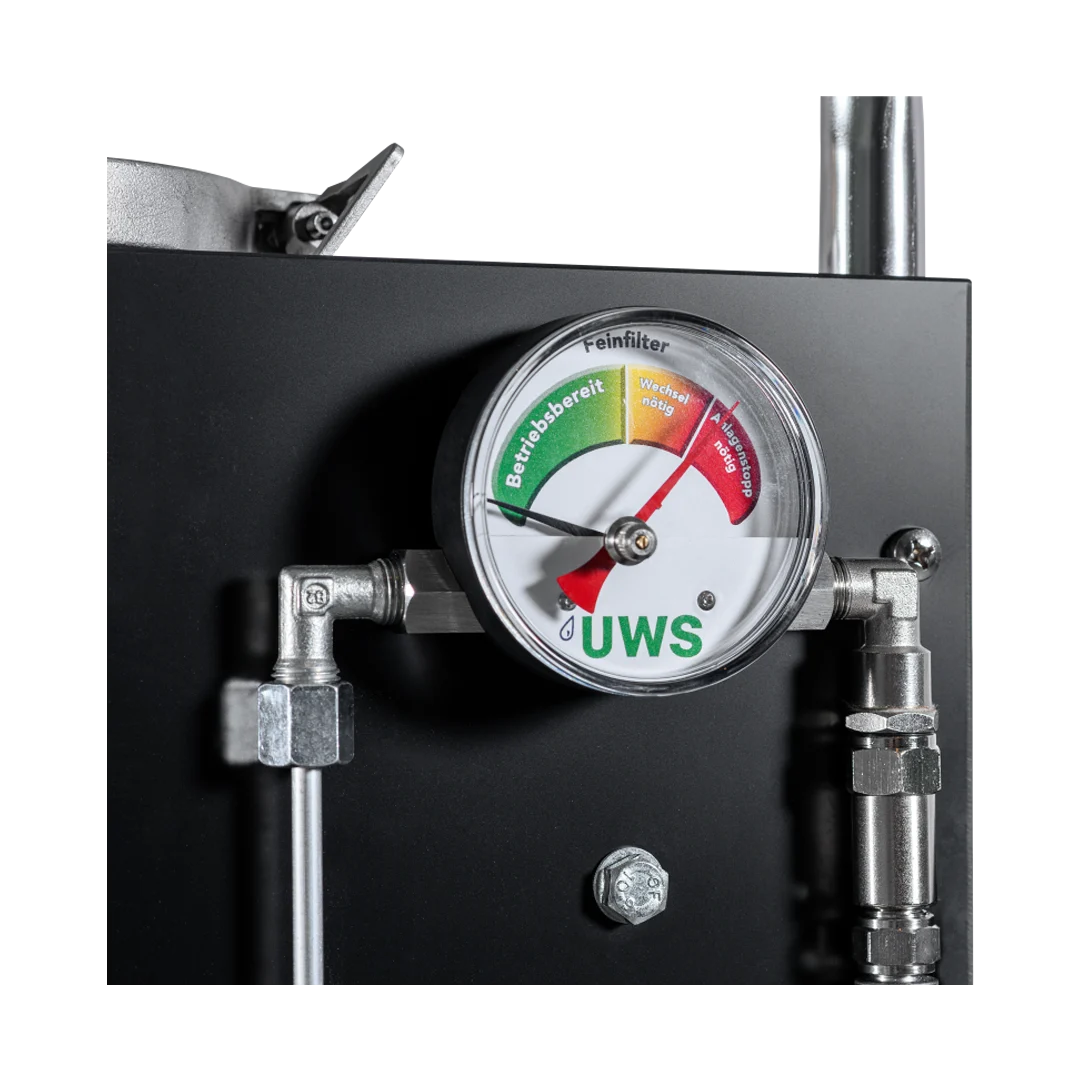

  • Filter capacity indicator visually shows the degree of soiling of the filter
  • New sampling tap makes it easy to check the heating water before treatment
  • Additional tube connections for higher filtration rate
  • Optimized hydraulics
  • Automatic venting at the filter

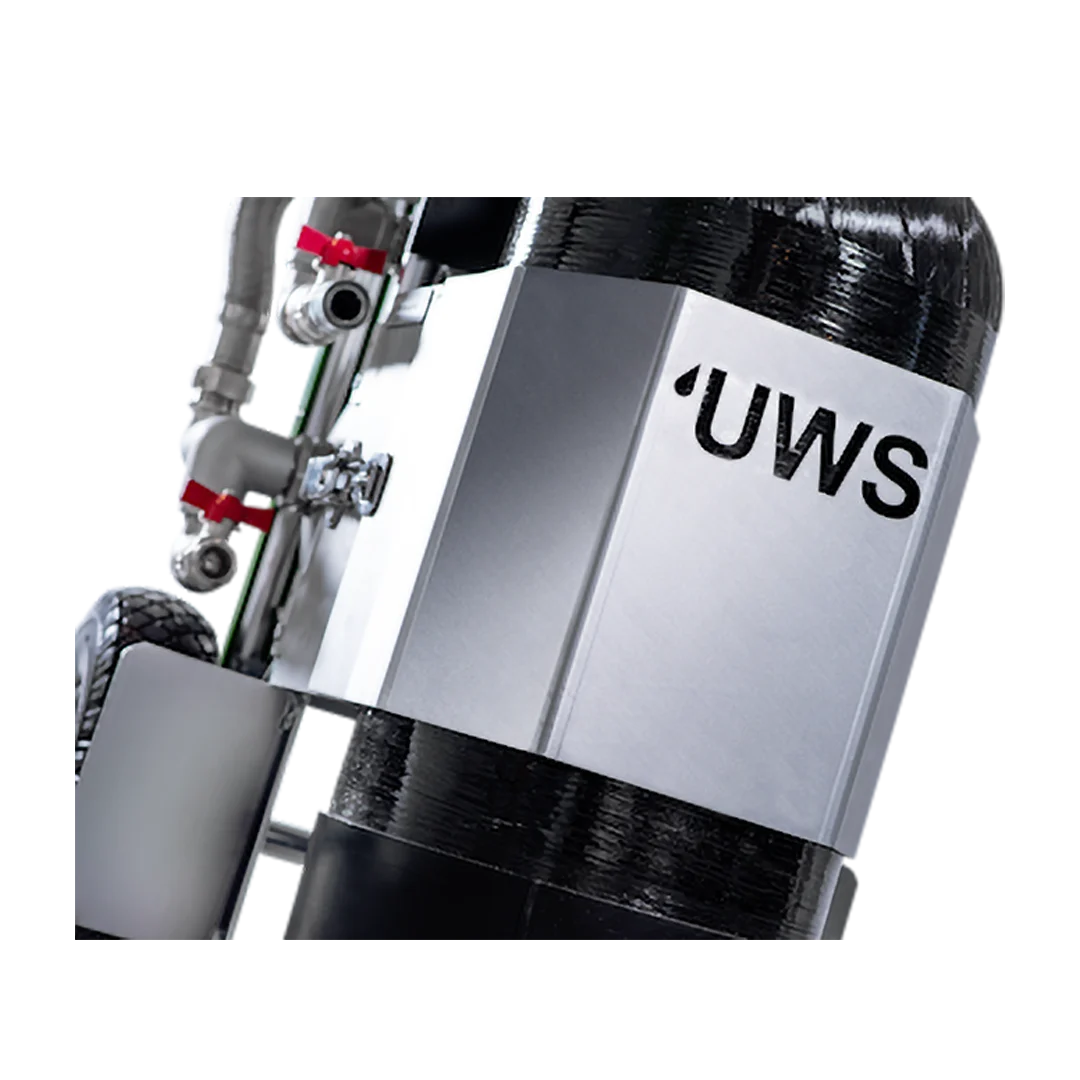

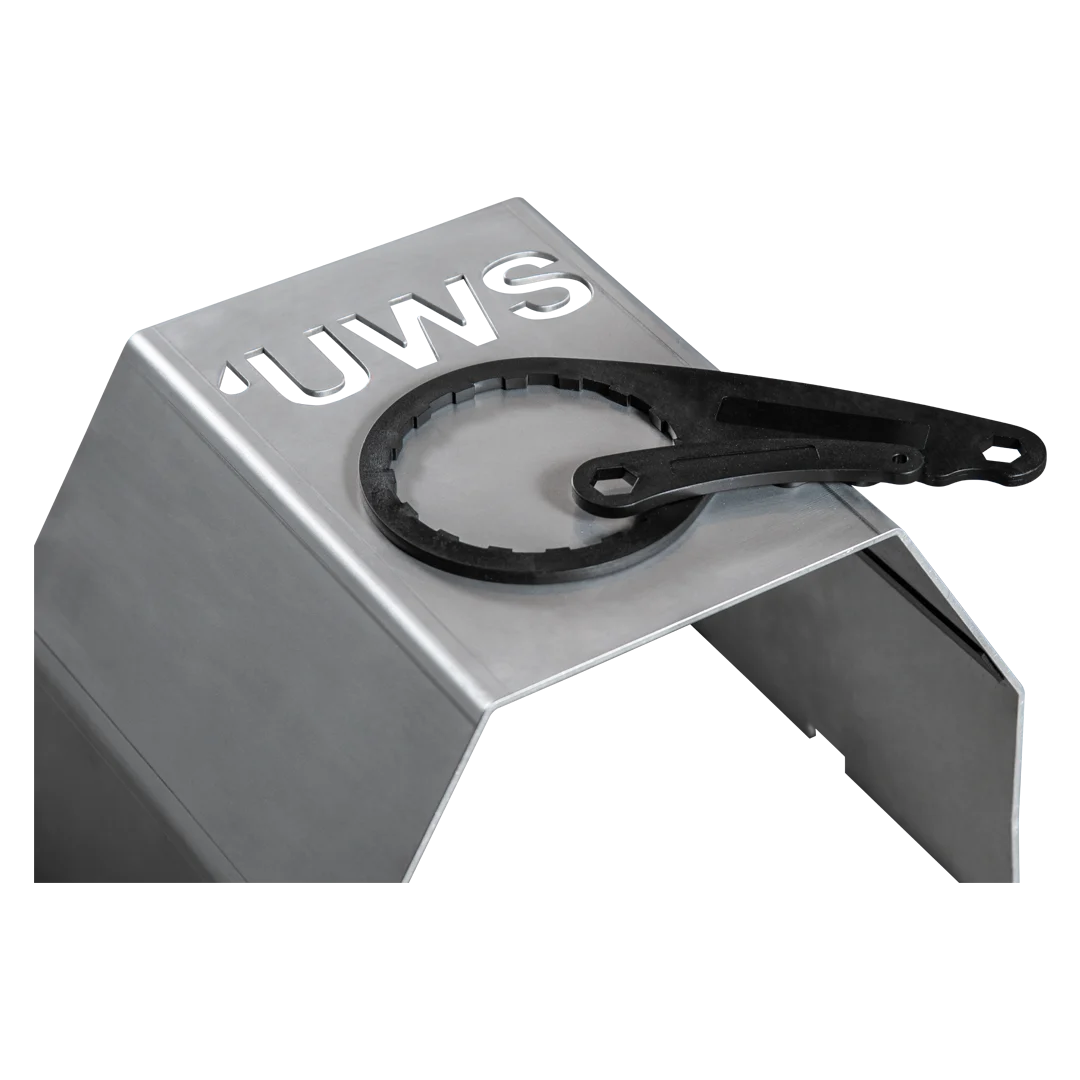

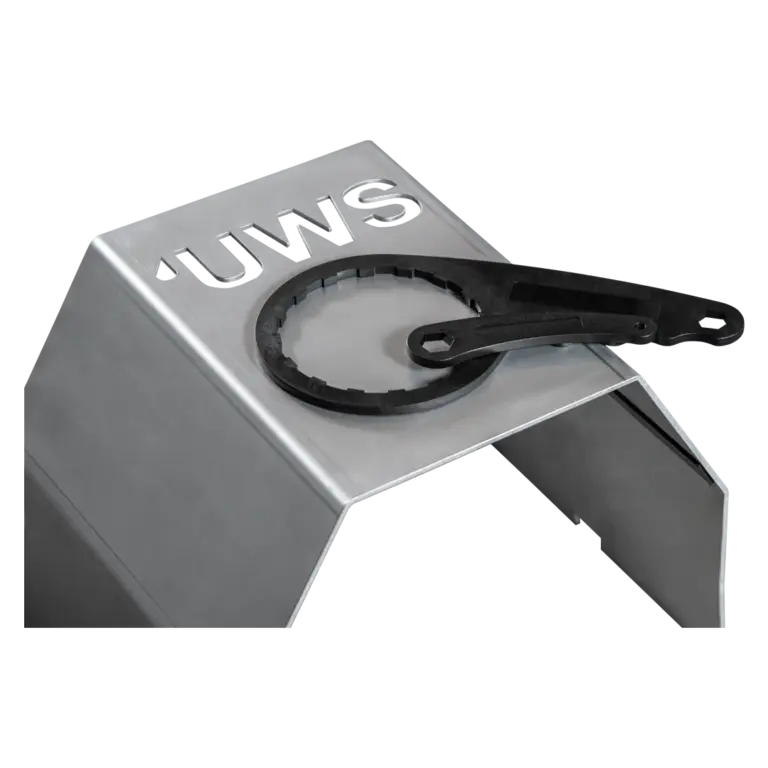

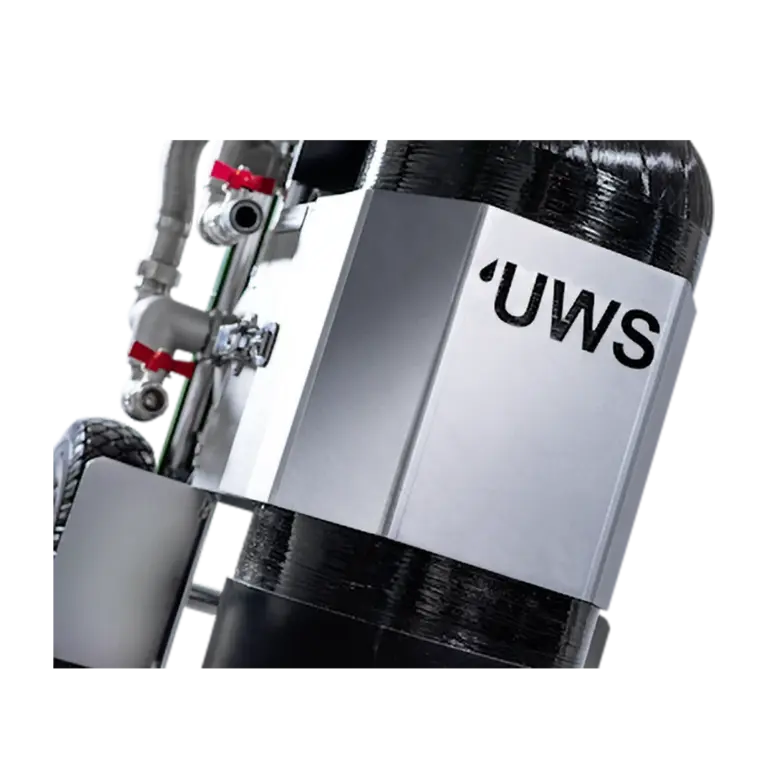

  • Processing container protected by a robust casing, making it even more suitable for the construction site

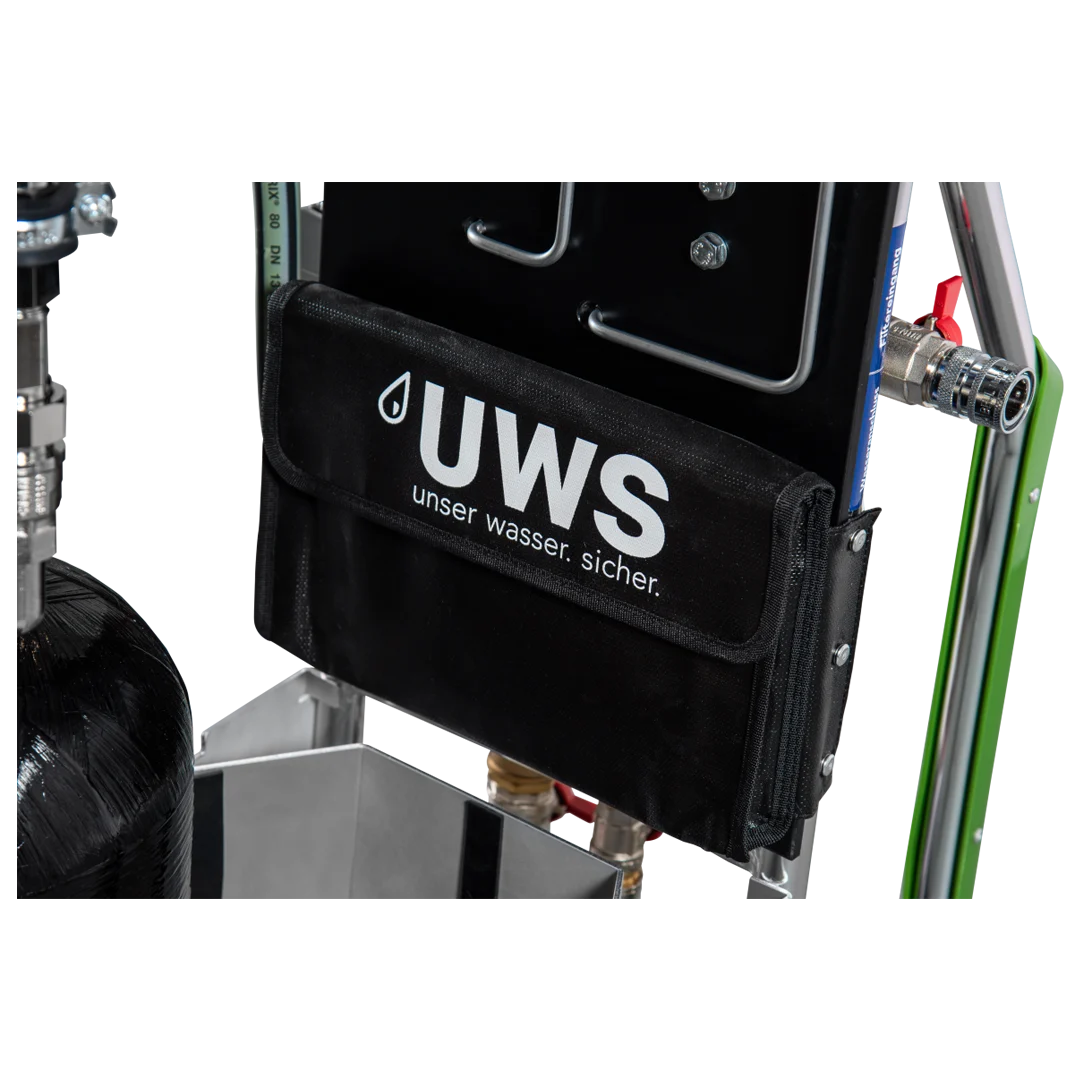

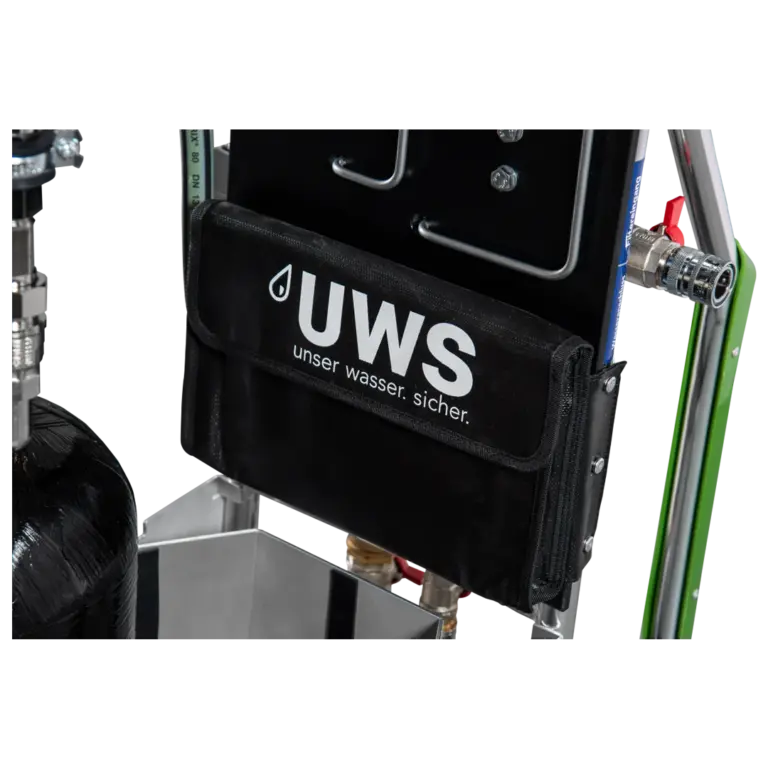

  • Required documents and tools in a permanently mounted, heat- and water-resistant bag
Max. Filling capacity 1,200 l/h
Ø Circulation capacity in the bypass process approx. 700 l/h
Min. Flow pressure 1.5 bar
Max. Operating pressure 6 bar
Max. Operating temperature 80 °C
Fine filter 1 µ
Height / width / depth (approx.) 1,200 / 500 / 560 mm
Weight (approx.) 57 kg
Mixed bed contents 23 l
Capacity at 420 μS/cm at < 100 3.420 l
Power supply 230 V
  • Plastic tank (filled with 23 liter mixing bed Vadion pH-Control)
  • Water meters and shut-off devices
  • Extraction tap for inspection
  • Funnel for easy refilling
  • Overrun protection, carrying handle
  • Solid rubber wheels
  • Non-return valve
  • Screen seal against resin ingress
  • LED measuring cell
  • Sack trolley
  • MAGella twister5

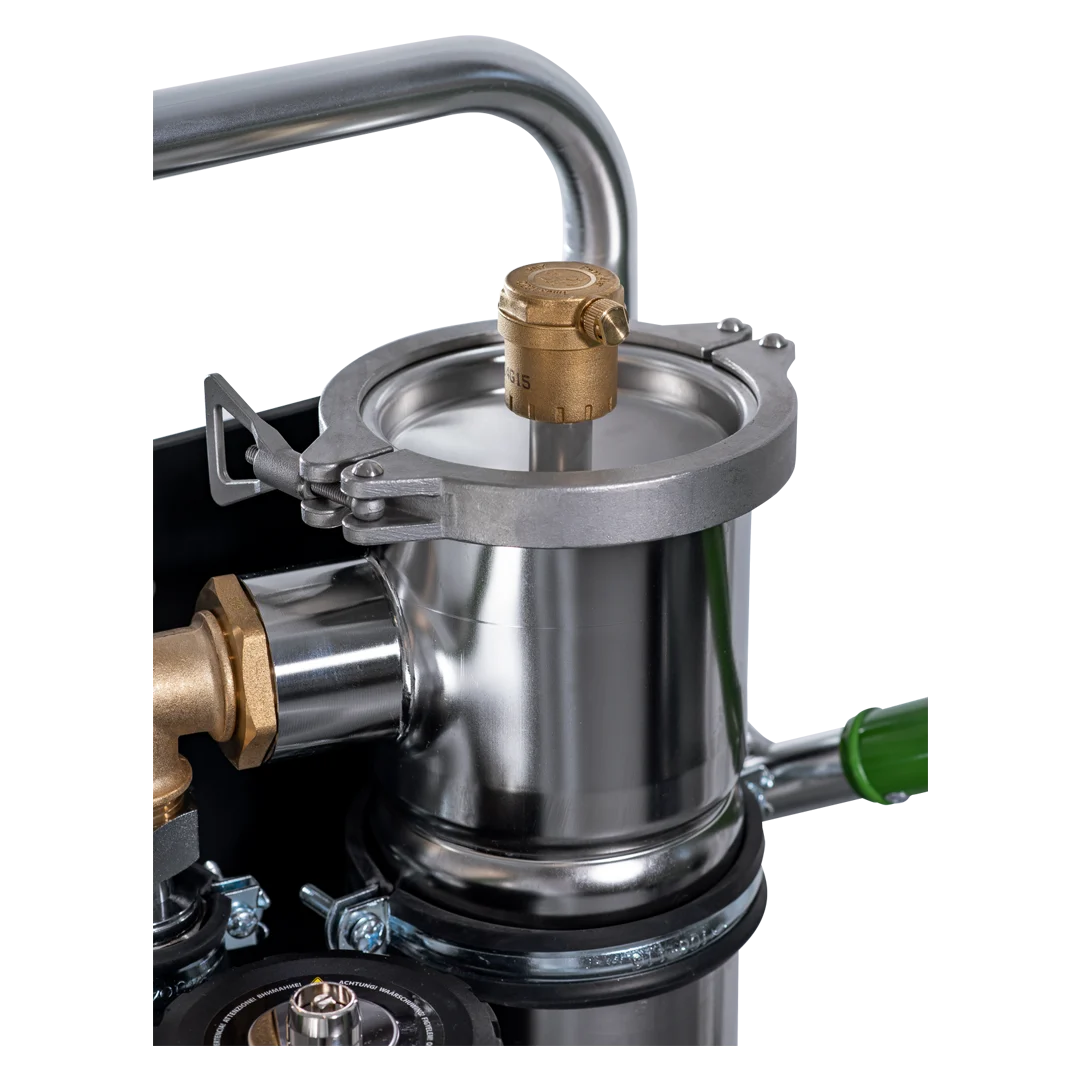

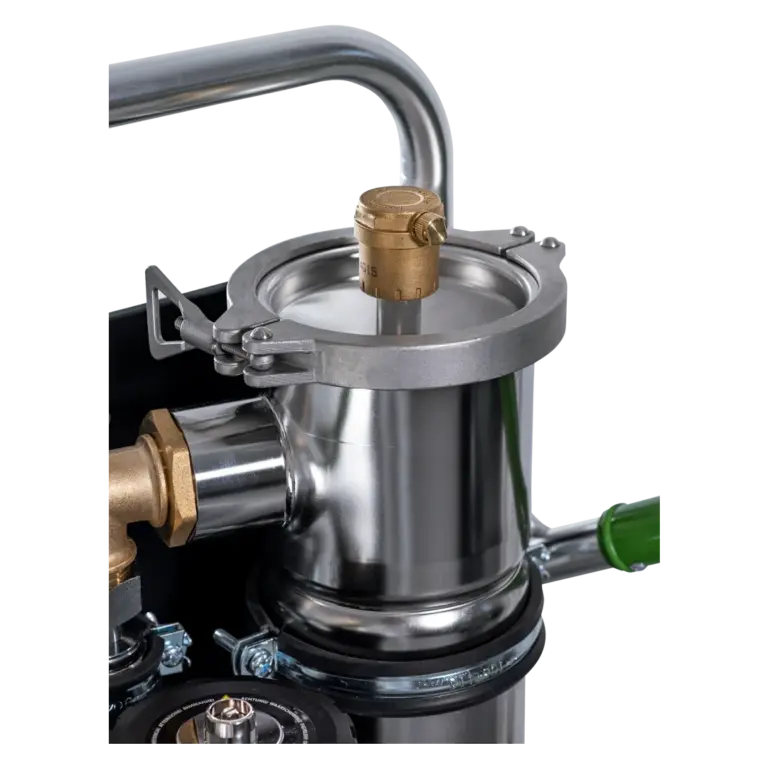

  • Stainless steel filter housing with 1 µ fine filter
  • Circulation pump
  • Hose set

Capacity calculator for reprocessing units

With our capacity calculator you can easily and quickly calculate the filling capacity of your unit as well as the expected required amount of Vadion pH-Control mixed bed resin. Please select whether it is a new or existing unit.
UWS Füllgerät
Mischbetttauscher
°dH des Wassers
Heizwasser in Liter
Füllkapazität Ihres Gerätes:
Füllwasser Kapazität ca.
20.700 l
Benötigte Gesamtmenge Vadion in Liter ca.
0,11 l
