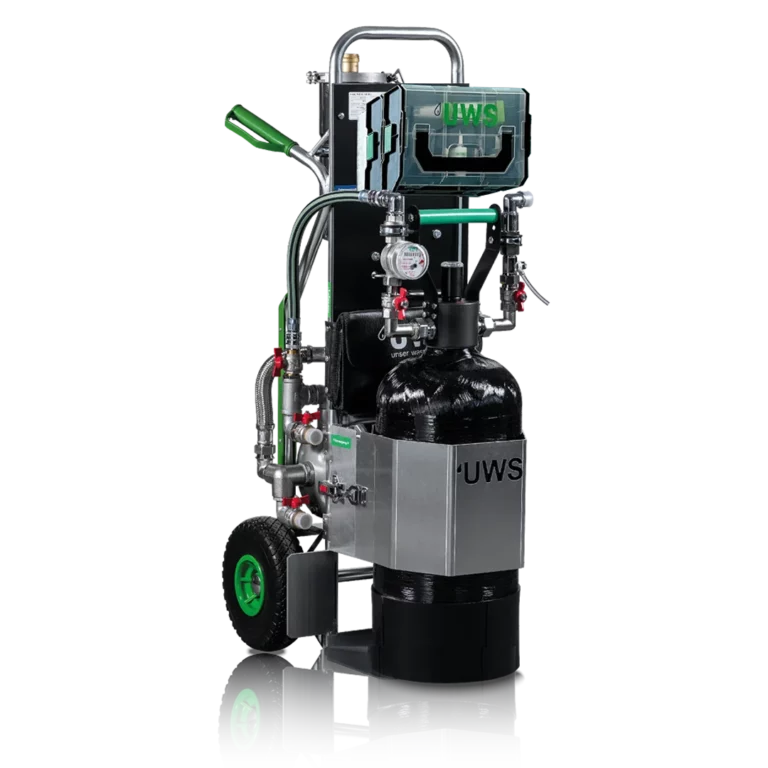

Heaty Profiline No. 2
Art.-Nr. 100455-FL
- Pre-installed unit for heating and cooling water treatment
- Treatment capacity with filtration in the bypass process approx. 1,900 l/h
- Capacity at 420 μS/up to 3,420 l/h
- Safe, simple and flexible bypass preparation
- Magnetite filtration through built-in magnetic flux filter
- Fine filtration down to 1 µm
Your advantages
- Unique dual filter with maximum separation capacity
- Now even more user-friendly and robust
- Filter capacity indicator visually shows the degree of soiling of the filter
- New sampling tap makes it easy to check the heating water before treatment
- Additional tube connections for higher filtration rate
- Optimized hydraulics
- Automatic venting at the filter
- Processing container protected by a robust casing, making it even more suitable for the construction site
- Required documents and tools in a permanently mounted, heat- and water-resistant bag
Scope of delivery
- Plastic tank (filled with 23 liter mixing bed Vadion pH-Control)
- Water meters and shut-off devices
- Extraction tap for inspection
- Funnel for easy refilling
- Overrun protection, carrying handle
- Solid rubber wheels
- Non-return valve
- Screen seal against resin ingress
- LED measuring cell
- Sack trolley
- MAGella twister5
- Stainless steel filter housing with 1 µm fine filter
- Circulation pump
- Hose set

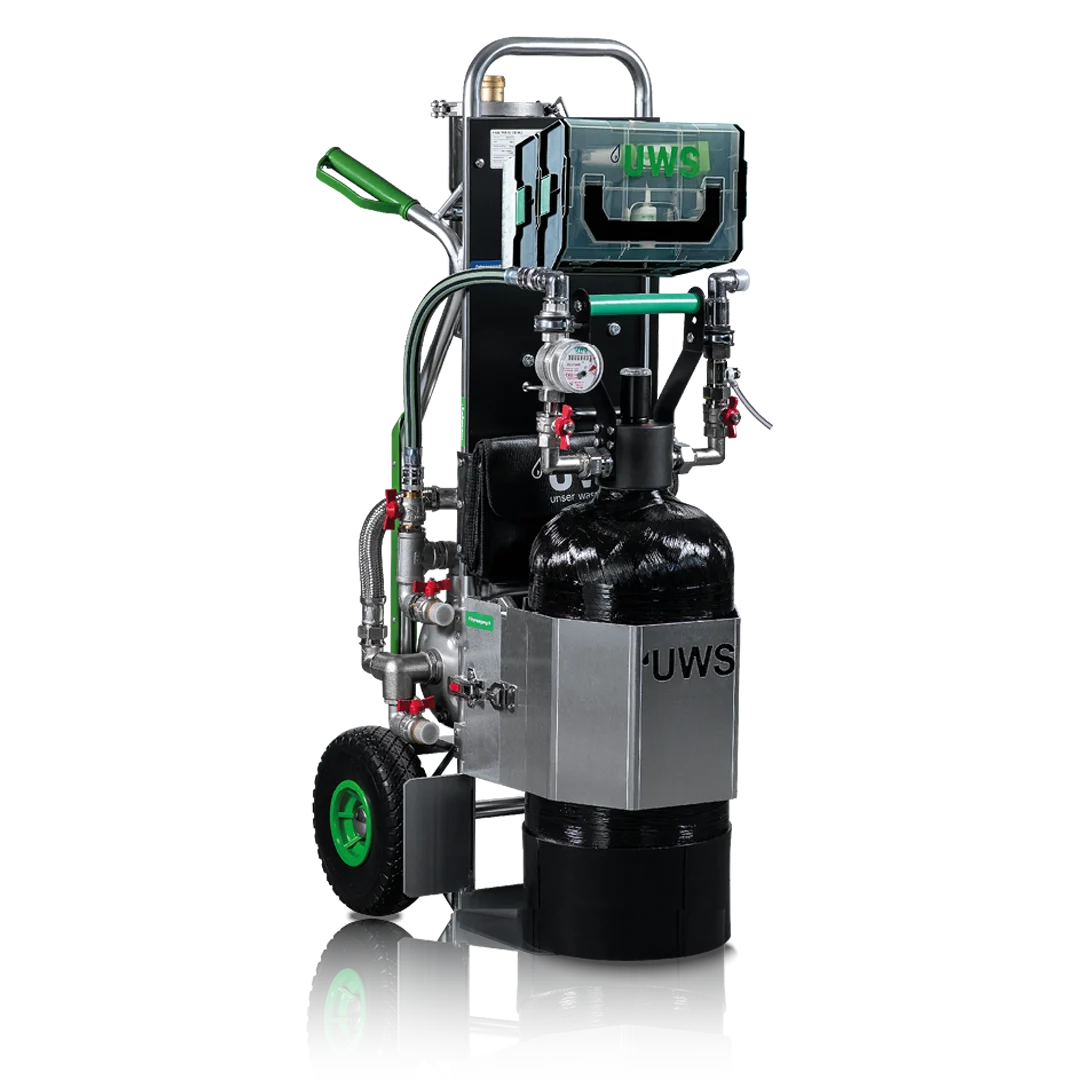

Heaty Profiline No. 2
Cooling/heating water treatment and high-performance filtration in a single mobile system
The Heaty Profiline No. 2 has been developed for the professional treatment of heating and cooling water in existing installations and combines high-performance filtration and treatment technology in a robust, practical system. Thanks to the integrated hot-water pump, the unit operates independently of the system and is ideally suited for treatment using the bypass method. This allows the system water to be treated continuously without disrupting the system’s ongoing operation.
The integrated MAGella twister5 dual filter ensures reliable removal of contaminants. It combines magnetic separation with ultra-fine filtration down to 1 µm, removing both magnetic and non-magnetic contaminants from the system water. The integrated filter capacity indicator provides information at all times on the current degree of filter fouling and indicates when a filter change is required. Additional hose connections also enable higher filtration rates and support particularly efficient system cleaning.
The integrated LED measuring cell monitors the condition of the treatment resin and reliably indicates its degree of exhaustion. The new sampling tap allows the heating water to be checked quickly and easily before treatment, making it simple to monitor water quality at any time.
The Heaty Profiline No. 2 has also been consistently further developed in terms of ease of use and suitability for construction sites. Optimised hydraulics, an automatic air-release valve on the filter and the robust protective casing of the processing tank ensure safe and reliable use in day-to-day operations. The design is complemented by a permanently fitted, heat- and water-resistant pouch, in which essential tools and documents can be stored so they are always to hand.
Heaven7 - UWS Cloud Portal
A new approach to digital system monitoring.
The UWS Cloud Portal brings together system information, measurement logs and system messages on a single central platform for the first time.
All data from the WaterBoy App is automatically documented in accordance with standards and can be accessed at any time. At the same time, intelligent Heaven7 devices such as the Racun series or replenishment solutions such as the Heaty Complete PROfessional deliver important information directly to the cloud – for example, in the event of leaks or when Vadion pH-Control mixed-bed resin has been used up.
This creates digital documentation of system statuses and operating data – clear, structured and available at any time.
measure – treat – replenish – document
One platform. All information. Maximum transparency.
Technical data
| Max. Filling Capacity | 1,200 l/h |
| Average Recirculation Capacity in Bypass Operation | approx. 950 l/h |
| Min. Flow Pressure | 1.5 bar |
| Max. Operating Pressure | 6 bar |
| Max. Operating Temperature | 80 °C |
| Fine Filter | 1 μm |
| Height / Width / Depth (approx.) | 1,180 / 520 / 580 mm |
| Weight (approx.) | 59 kg |
| Mixed Bed Resin Volume | 23 l |
| Capacity at 420 μS/cm to < 100 μS/cm | 3,420 l |
| Power Supply | 230 V |
