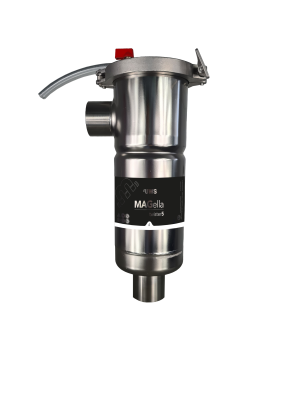

MAGella twister5
Art.-Nr. MAG-100100
The dual filters in the MAGella twister series are unique, highly efficient system filters for magnetic and non-magnetic contaminants in heating and cooling systems. They include an absolute fine filter up to 1 μm and one of the most powerful magnetite filters on the market.
Your advantages
- Tool-free opening and cleaning of just one filter
- Magnetraw with 6 x 12,000 Gauss
- Twister insert for volume flow control with retaining barrier
- Absolute fine filter 1μm (0.001mm) with 90% separation capacity
- Sludge filtration (wet dirt)
- High-performance dual filter – predestined for large systems
- Delivery ready for installation
- Very high flow rate
Scope of delivery
- MAGella twister5
- High-gloss filter housing made of V4A stainless steel
- Filter basket with seal to increase fine filtration
- Pressure spring to increase fine filtration
- KFE drain valve
- Brackets for filters
- Vent shut-off with hose
- Shut-off valves 2x 1 1/2″
MAGella twister10
Art.-Nr. MAG-100101
The dual filters in the MAGella twister series are unique, highly efficient system filters for magnetic and non-magnetic contaminants in heating and cooling systems. They include an absolute fine filter up to 1 μm and one of the most powerful magnetite filters on the market.
Your advantages
- Tool-free opening and cleaning of just one filter
- Magnetraw with 11 x 12,000 Gauss
- Twister insert for volume flow control with retaining barrier
- Absolute fine filter 1μm (0.001mm) with 90% separation capacity
- Sludge filtration (wet dirt)
- High-performance dual filter – predestined for large systems
- Delivery ready for installation
- Very high flow rate
Scope of delivery
- MAGella twister10
- High-gloss filter housing made of V4A stainless steel
- Filter basket with seal to increase fine filtration
- Pressure spring to increase fine filtration
- KFE drain valve
- Brackets for filters
- Vent shut-off with hose
- Shut-off valves 2x 1 1/2″
Unique dual filters with outstanding separation performance – even for the finest particles
The dual filters of the MAGella twister series are high-performance filtration units for the removal of magnetic and non-magnetic contaminants from heating and cooling systems. They combine fine filtration down to 1 μm with highly efficient magnetite separation. Equipped with the Magnetraw system (11 × 12,000 gauss), the MAGella twister 10 offers the highest magnetic separation capacity of any compact filter currently available on the market.
Heaven7 - UWS Cloud Portal
A new approach to digital system monitoring.
The UWS Cloud Portal brings together system information, measurement logs and system messages on a single central platform for the first time.
All data from the WaterBoy App is automatically documented in accordance with standards and can be accessed at any time. At the same time, intelligent Heaven7 devices such as the Racun series or replenishment solutions such as the Heaty Complete PROfessional deliver important information directly to the cloud – for example, in the event of leaks or when Vadion pH-Control mixed-bed resin has been used up.
This creates digital documentation of system statuses and operating data – clear, structured and available at any time.
measure – treat – replenish – document
One platform. All information. Maximum transparency.
Technical data
| Parameter | MAGella twister5 | MAGella twister10 |
| Max. Flow Rate | 5 m³/h | 10 m³/h |
| Max. Operating Temperature | 80 °C | 80 °C |
| Magnetic Field Strength | 6 × 12,000 Gauss | 11 × 12,000 Gauss |
| Absolute Fine Filter | 1 μm (0.001 mm) | 1 μm (0.001 mm) |
| Max. Operating Pressure | 10 bar | 10 bar |
| Installation Height | 590 mm | 900 mm |
| Inlet | 1 1/2″ | 1 1/2″ |
| Outlet | 1 1/2″ | 1 1/2″ |
