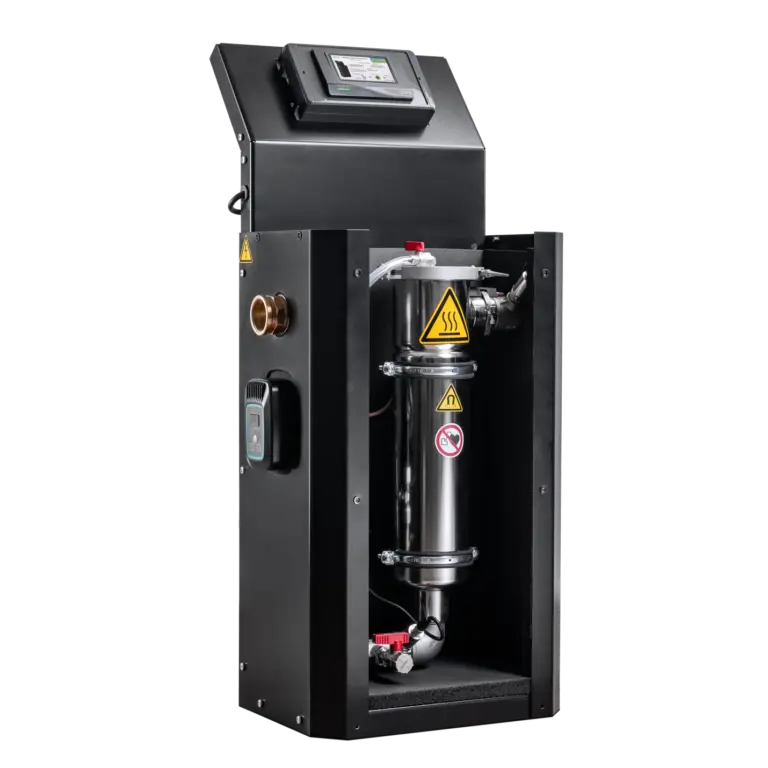

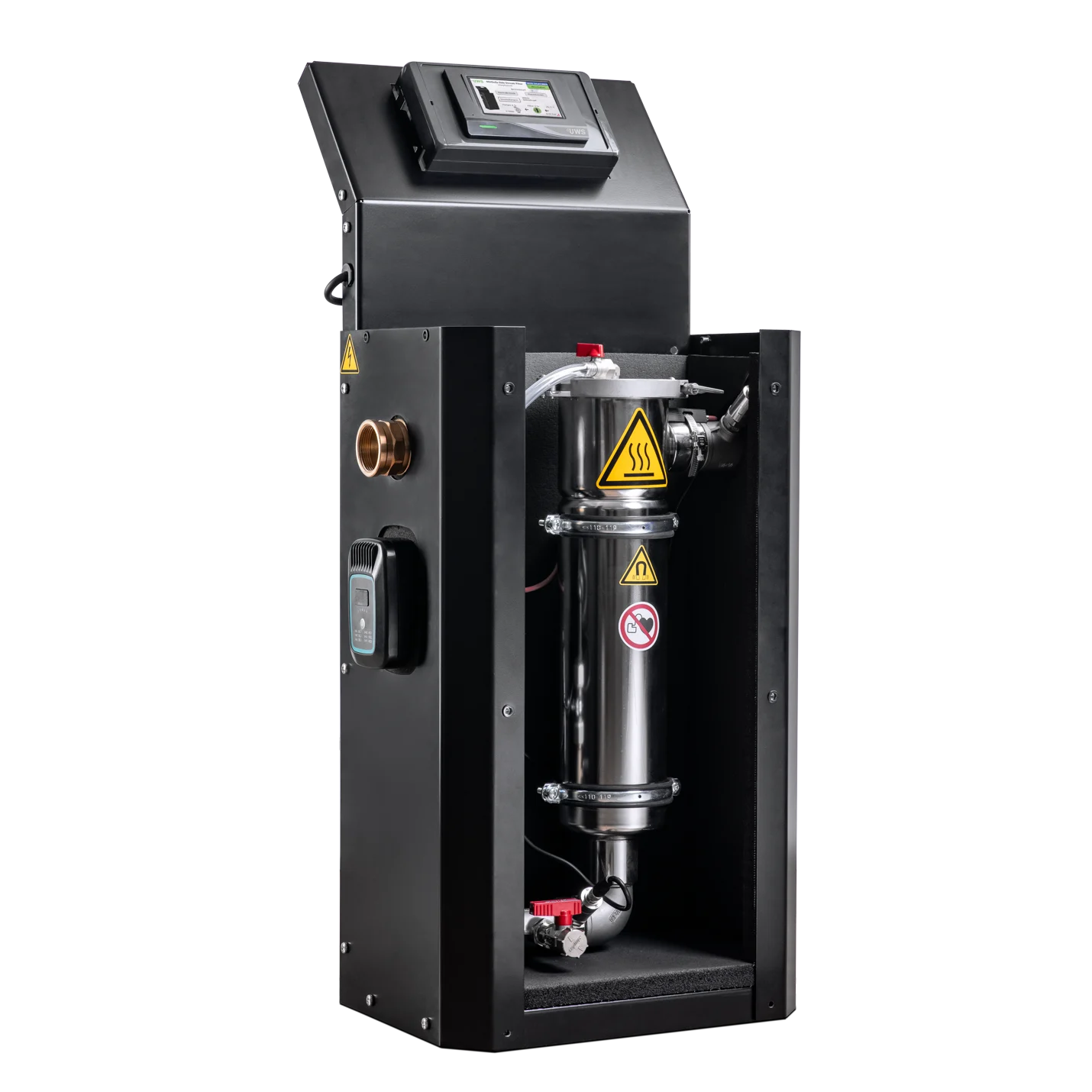

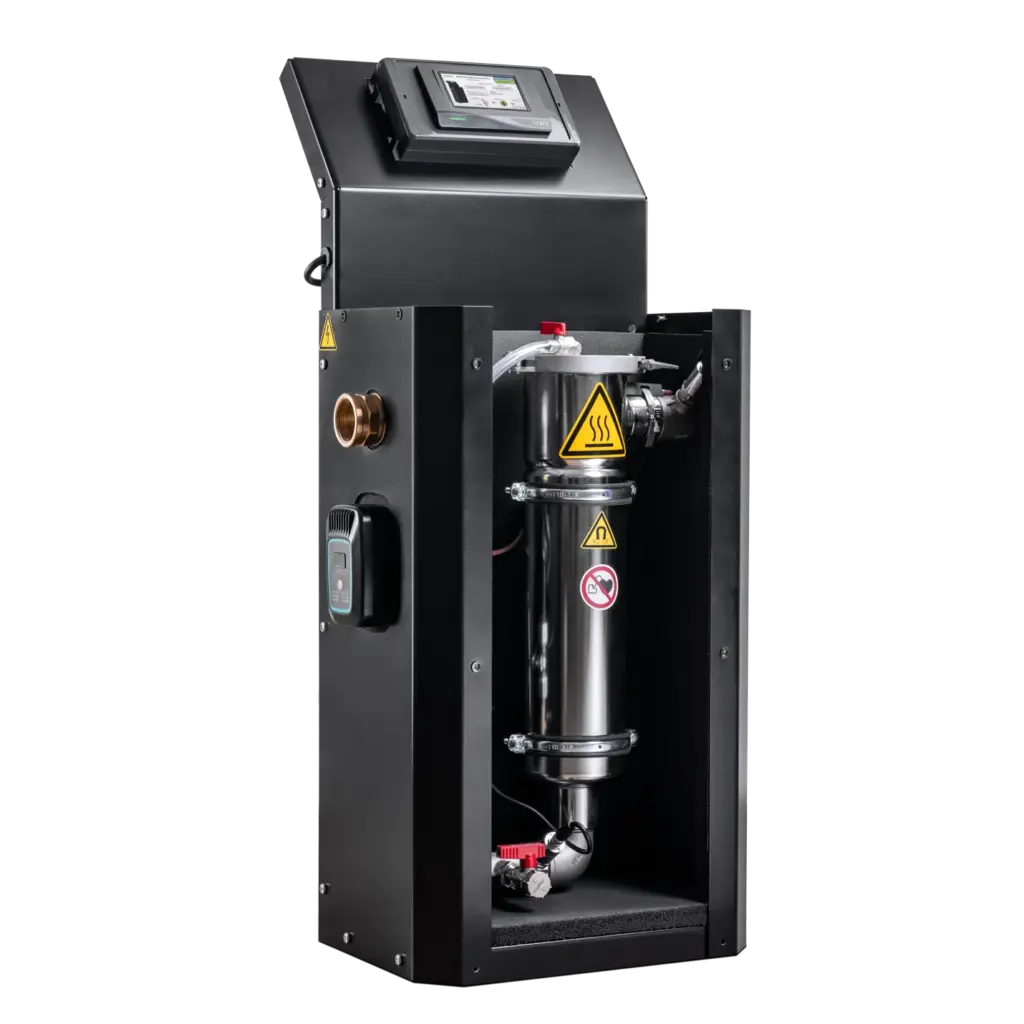

MAGella Side Stream Filter
Art.-Nr. MAG-200200
The MAGella Side Stream Filter is a filter unit for the permanent filtration of water using the bypass method in heating systems.
The bypass process does not affect the volume flow in the respective system.
The MAGella Side Stream Filter is used for magnetite separation and ultra-fine filtration.
If the filter capacity, pressure or temperature is exceeded, an alarm is triggered and the filter unit is switched off immediately.
Your advantages
- Alarm and automatic switch-off if the set parameters are exceeded or not reached
- Automatic switch-off when filter is full
- Powerful magnetite separator with 11 x 12,000 gauss and 1 µm ultra-fine filter
- Pump-controlled bypass filtration
- Documentation of the filtration quantity
- Remote access via BMS: change settings, view statistics, select operating modes
- User-defined time control (normal & continuous operation)
- Bypass filter for fixed installation
- Fully automatic control of filtration
Scope of delivery
- Completely pre-assembled filter unit
- connection 1 1/2’ BSP G female thread
- MAGella twister10
- circulation pump
- flow meter
- pressure sensors
- KFE fill and drain valve
MAGella Side Stream Filter:
Continuous water filtration using the bypass method in cooling and heating systems
The MAGella Side Stream Filter is a high-performance filter unit designed for continuous water treatment in heating systems. As it is integrated into the bypass circuit, only a partial flow of the system water is routed through the filter unit, meaning that the flow rate in the actual heating system remains unaffected and normal operation is not disrupted.
The filter unit combines effective magnetic separation with ultra-fine filtration, thereby removing both magnetic and non-magnetic contaminants from the system water. This helps to reduce deposits, protect sensitive system components and improve operational reliability in the long term.
To ensure safe operation, the MAGella Side Stream Filter continuously monitors key operating parameters. If defined limit values for filter capacity, pressure or temperature are exceeded, a visual and audible alarm is triggered automatically. At the same time, the filter unit is shut down immediately to prevent damage to the system or the filter technology.
Heaven7 - UWS Cloud Portal
A new approach to digital system monitoring.
The UWS Cloud Portal brings together system information, measurement logs and system messages on a single central platform for the first time.
All data from the WaterBoy App is automatically documented in accordance with standards and can be accessed at any time. At the same time, intelligent Heaven7 devices such as the Racun series or replenishment solutions such as the Heaty Complete PROfessional deliver important information directly to the cloud – for example, in the event of leaks or when Vadion pH-Control mixed-bed resin has been used up.
This creates digital documentation of system statuses and operating data – clear, structured and available at any time.
measure – treat – replenish – document
One platform. All information. Maximum transparency.
Technical data
| Max. Operating Pressure | 8 bar |
| Max. Flow Rate | 5 m³/h |
| Max. Operating Temperature | 80 °C |
| Filtration | ≥ 1 μm |
| Glycol / Water | up to 50/50 |
| Power Supply | 230 V |
| Power Consumption | 160 W |
| Display Size | 4.3″ |
| Weight | 32 kg |
| Housing Dimensions (H × W × D in mm) | 992 × 490 × 405 |
| Width Including Connections | 520 mm |
| Connection | 1 1/2″ BSP G female thread |
| Languages | German, English, French |
