Unique filters

Dual filter and magnetite separator

High-performance filters for all system sizes.

Depending on the size, you can choose between the MAGella 100/200 magnetite separators and the MAGella twister5/10 dual filters.

Magnetite and fine filters for the removal of system contamination

Contaminants in heating and cooling systems lead to wear and premature failure of pumps, valves and heat exchangers. The dual filter (magnetite and fine filter) and magnetite separator in our MAGella range protect your systems from all types of contamination. This saves your customers energy and money.

Even low quantities of iron oxide or other contaminants result in significant losses in efficiency and therefore wasted energy. The filters in the MAGella range can remove virtually 100% of the black iron oxide sludge (magnetite) that is present as suspended matter in all central heating systems, as well as all other particles as small as 1 µm. The filters “actively” catch the circulating dirt, ensuring year-round protection.

Why have we developed the MAGella range?

Mr Heaty, our superhero for standard-compliant water treatment, met Ms Magella while treating a heating system. And she was on a mission to combat magnetite in heating and cooling systems. They both realised that their tasks complement each other wonderfully, so decided to develop solutions for clean water together with us.

Small systems

Medium-sized systems

Large systems

The MAGella 100 magnetite separator is a compact magnetite filter for removing system contamination in heating and cooling systems. It removes all types of contamination that usually occur in these systems. It protects the boiler and helps to maintain optimum operation and efficiency of the system.

The MAGella MG 100 makes use of a unique magnetic core to maximise the contact time between the circulating contaminants and the powerful neodymium iron boron magnets. It is particularly suitable for systems with little space available. It has a compact design combined with a linear construction and a T-piece that can be rotated by 360°.

prev

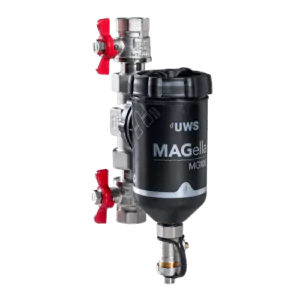

Magella MG100
Magnetite separator
MAGella MG 100
Magnetite separator with a flow rate of 32 l/min
To the product

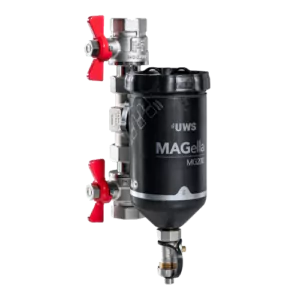

MAGella MG200 Magnetitabscheider
Magnetite separator
MAGella MG 200
Magnetite separator with a flow rate of 50 l/min
To the product
next

Small and compact

Circulating contaminants in heating systems can lead to wear and premature failure of pumps, valves and heat exchangers. The MAGella MG 100 mounted on the return line on the boiler protects the system from all types of contamination.

list-icon
Compact design: lower height for easy installation in confined spaces
list-icon
Bleibt verstopfungsfrei: Systembetrieb wird durch vollen Filter nicht beeinträchtigt
list-icon
Manipulationssicher: Sicherheitsfunktion mit Ablass-/Tastventil
list-icon
Flow rate: up to 32 litres per minute

Built to automotive standards with a robust GRP housing, double seals and high-quality brass valves manufactured in the EU, the MAGella MG 200 offers you lasting quality with a 10-year warranty. It has a high separation capacity and is ideal for high flow rates.

The MAGella core reduces the water flow rate and turbulence within the filter to improve the retention of contaminants. It also ensures that the filter remains clog-free. The separated impurities can be easily flushed out of the system by removing the magnet and opening the drain valve on the lower part of the filter.

prev
MAGella MG200 Magnetitabscheider
Magnetite separator
MAGella MG 200
Magnetite separator with a flow rate of 50 l/min
To the product

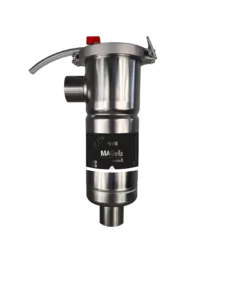

MAGella twister5 Dualfilter
Magnetite separator
MAGella twister5
Dual filter (magnetite and fine filter) with 5 m³/h flow rate
To the product
next

Compact and powerful

Circulating contaminants in heating and cooling systems can lead to wear and premature failure of pumps, valves and heat exchangers. The MAGella MG 200 mounted on the return line on the boiler protects the system from all types of contamination.

list-icon
High separation capacity: suitable for use in systems that are larger or more heavily contaminated or that circulate a significant quantity of contaminants
list-icon
Remains clog-free: system operation is not affected by a full filter
list-icon
Tamper-proof: safety function with drain/push button valve
list-icon
High flow: maximum flow rate of 50 litres per minute

The dual filters in the MAGella twister range are unique, highly efficient system filters for magnetic and non-magnetic contaminants in heating and cooling systems. They include an absolute fine filter up to 1 μm and one of the most powerful magnetite separators on the market. With its 11 x 12,000-gauss magnet, the MAGella twister 10 is probably the most powerful compact filter in the world.



The fine filter with pressure spring removes even the finest dirt particles from the system. With a flow rate of 5 or 10 m³/h, it is also ideal for use in very large systems. The twister insert ensures continuous distribution of the volume flow and provides a retaining barrier for heavy magnetite particles.

prev
MAGella twister5 Dualfilter
Magnetite separator
MAGella twister5
Dual filter (magnetite and fine filter) with 5 m³/h flow rate
To the product
Dual filter

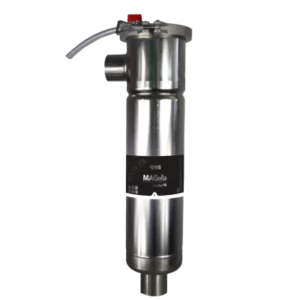

MAGella twister10
Dual filter (magnetite and fine filter) with 10 m³/h flow rate
To the product
next

Capacity calculator for reprocessing units

With our capacity calculator you can easily and quickly calculate the filling capacity of your unit as well as the expected required amount of Vadion pH-Control mixed bed resin. Please select whether it is a new or existing unit.
UWS Füllgerät
Mischbetttauscher
°dH des Wassers
Heizwasser in Liter
Füllkapazität Ihres Gerätes:
Füllwasser Kapazität ca.
20.700 l
Benötigte Gesamtmenge Vadion in Liter ca.
0,11 l
