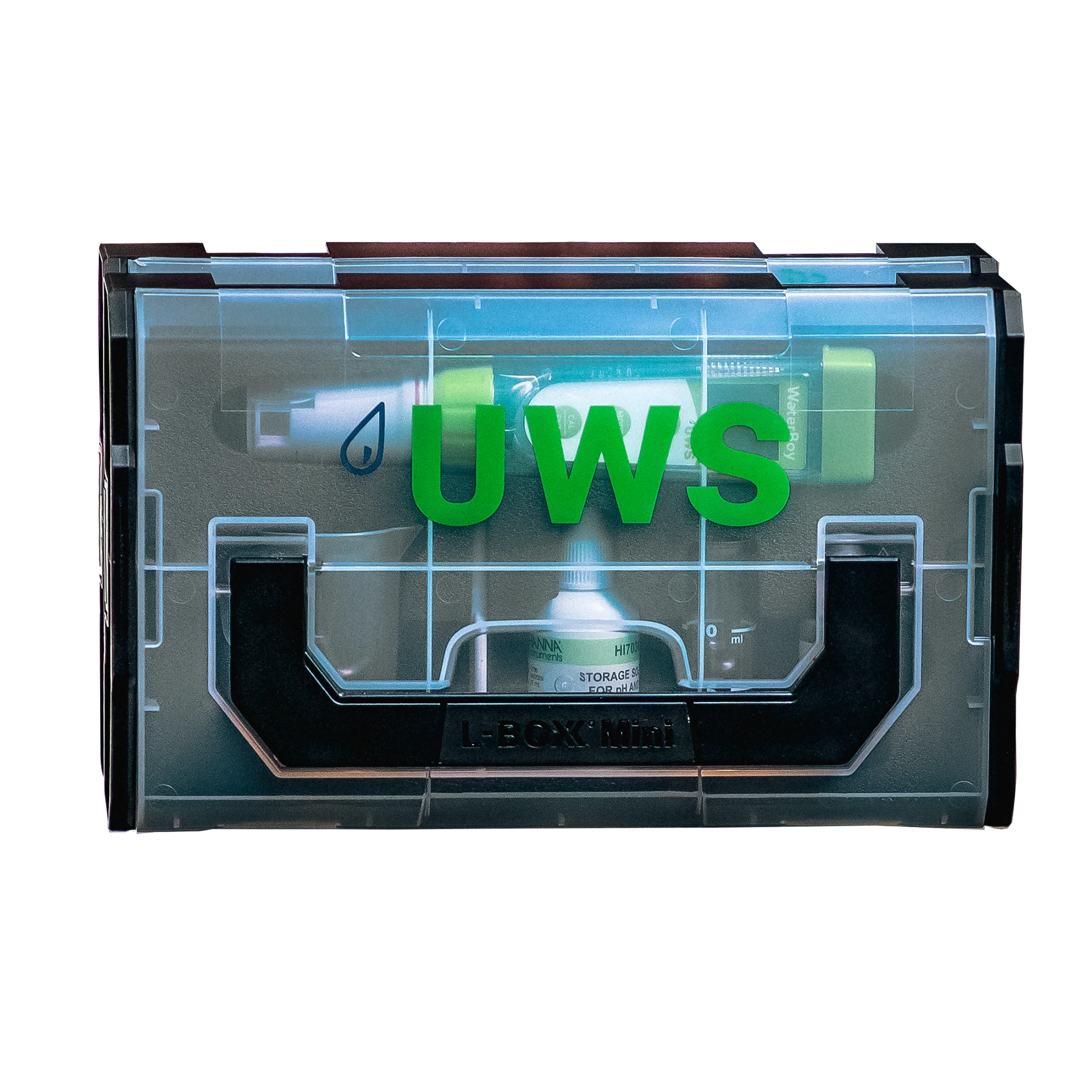

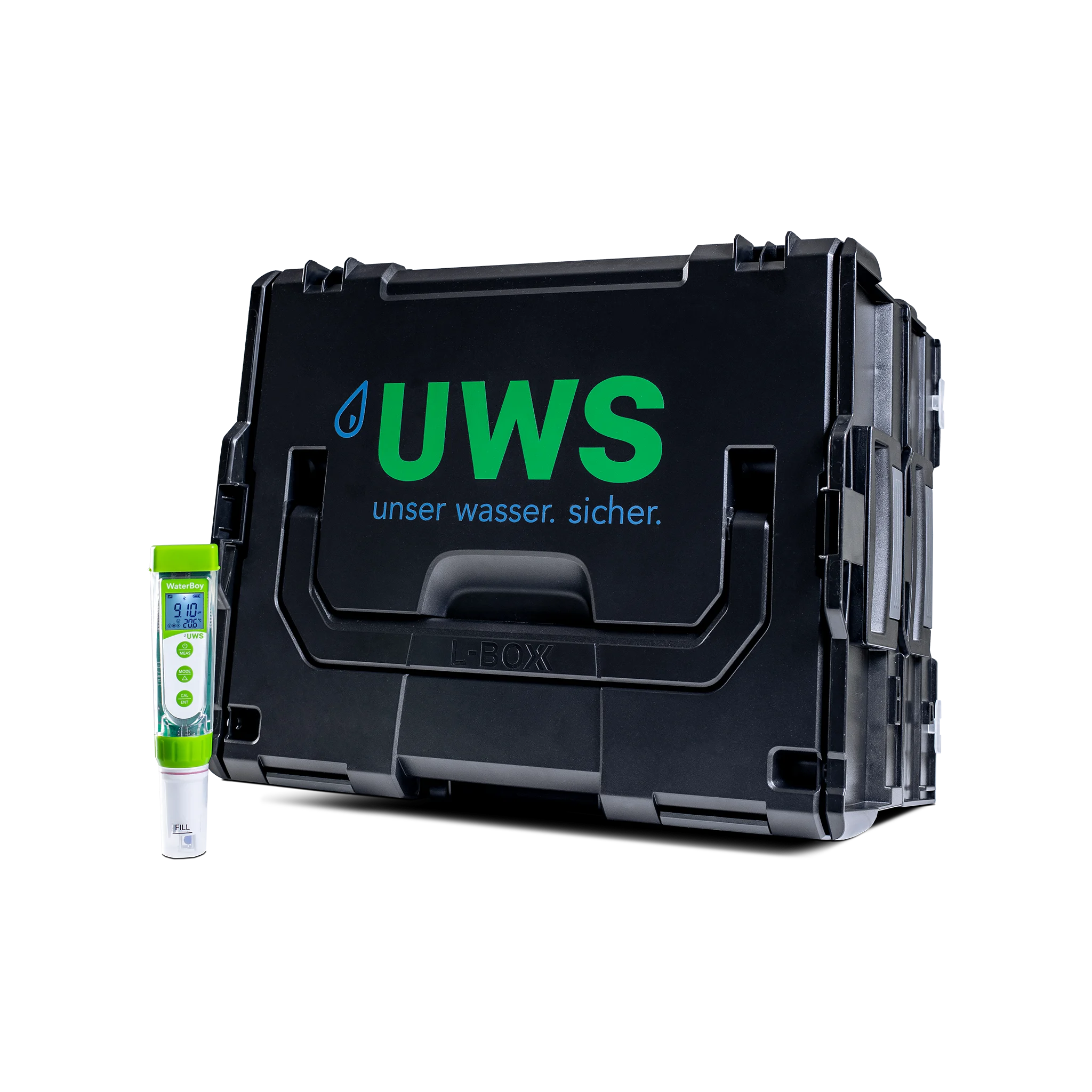

WaterBoy measuring case
WaterBoy measuring case

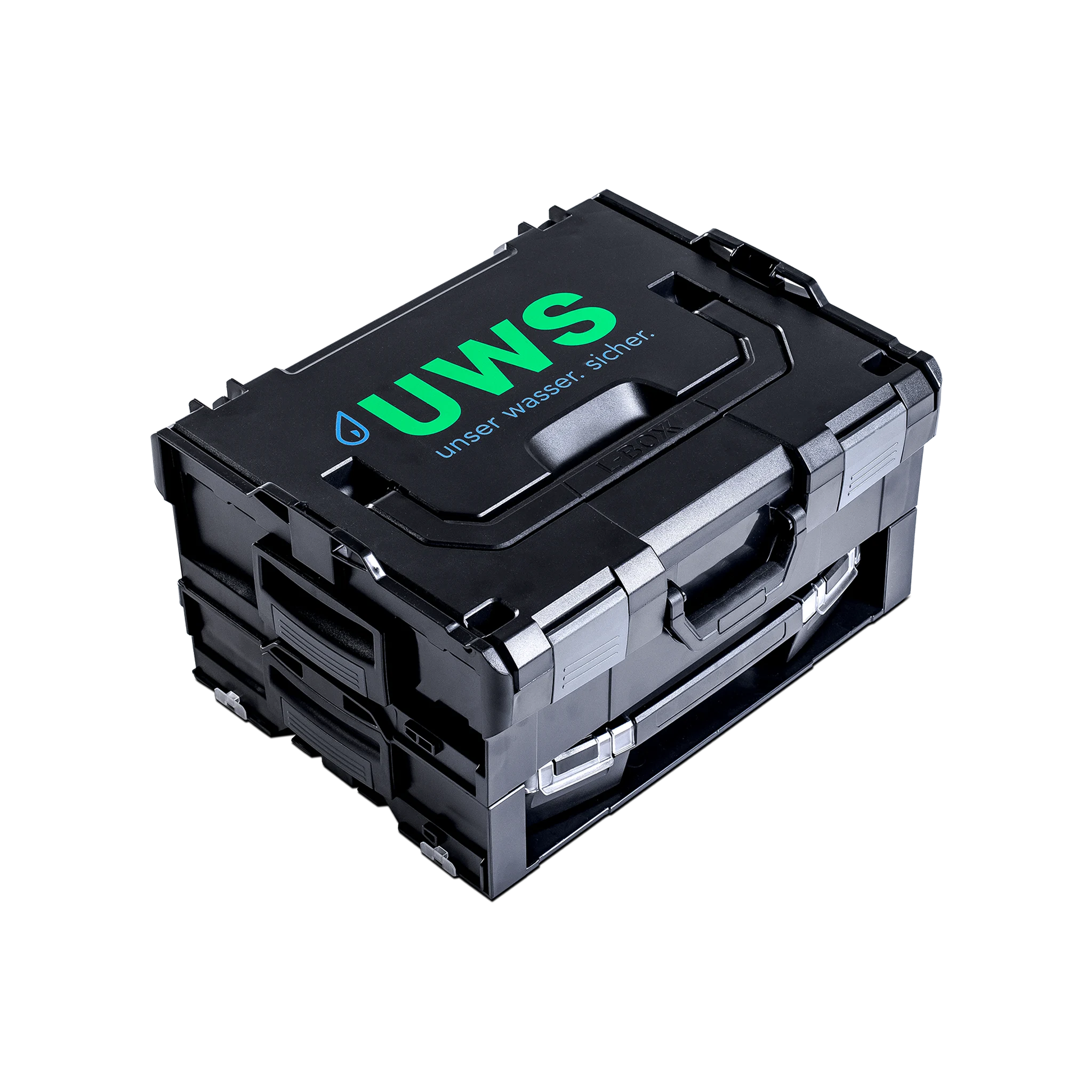

The UWS WaterBoy measuring case contains everything the HVAC specialist needs to measure data in accordance with the VDI 2035, ÖNORM H 5195-1 and SWKI BT 102-01 standards.

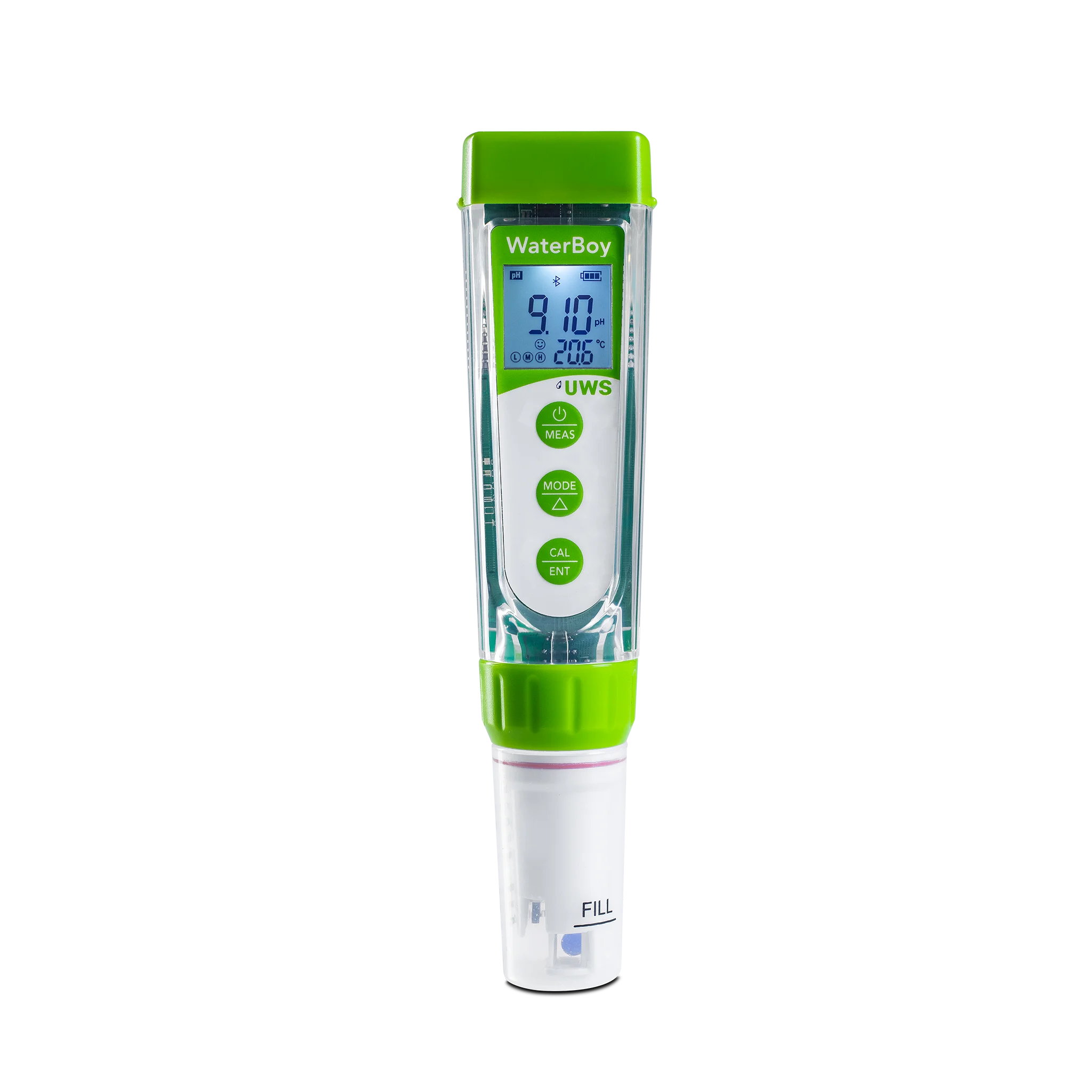

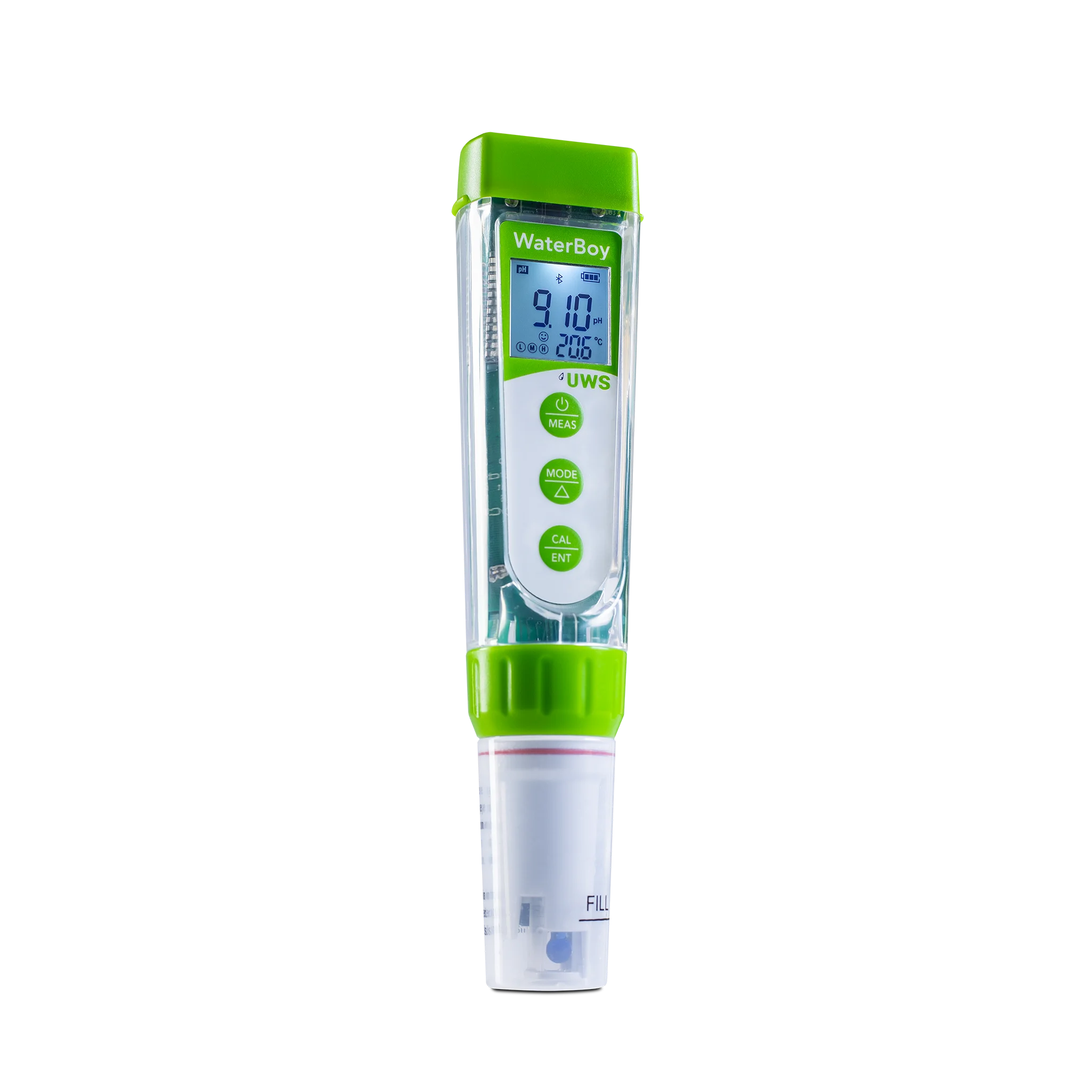

The most important component is the UWS WaterBoy, a measuring device for analyzing the heating water. Using the free app for iOS and Android, the parameters for pH value, conductivity, TDS (total dissolved solids), salt content, temperature and specific resistance can be easily measured. Thanks to the calibration solutions included in the scope of delivery, you can achieve very accurate measurement results. The heating water meter and the associated app offer object-related storage and documentation of all measurement parameters and precise 3-point calibration.
- Replaceable electrode
- Dual meter for pH and conductivity

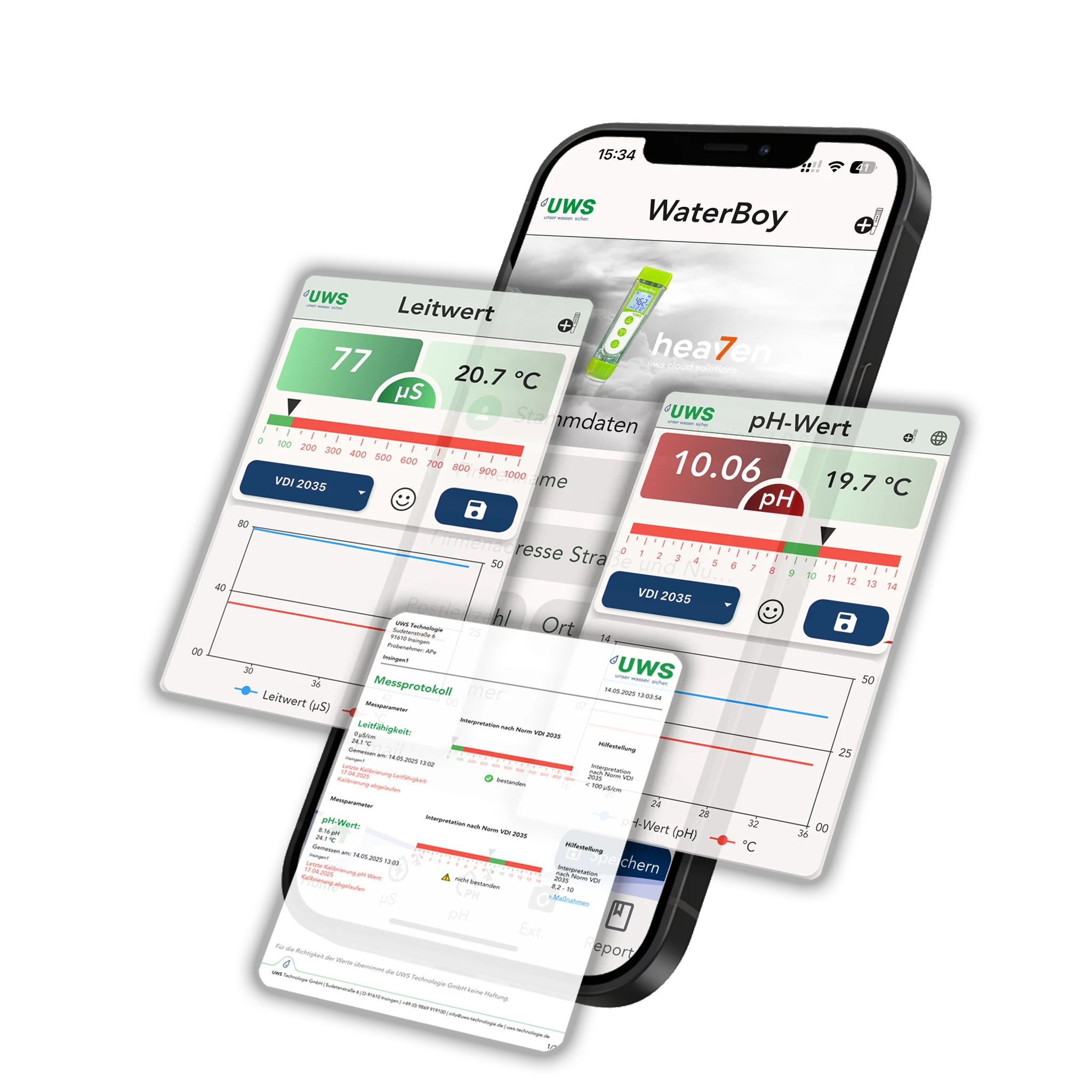

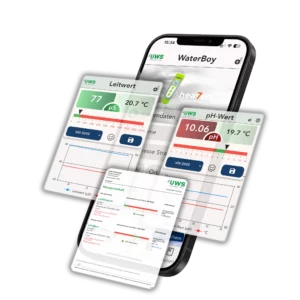

- Smart and networked: Simply connect the measuring device to your smartphone and use the intuitive app:
– Storage & documentation of all measurement parameters – object-related
– Interpretation of the parameter results depending on the selected standard
– Creation of a measurement log as proof > Replacement for system log
– Step-by-step instructions for the calibration process - Thanks to simple, optional 3-point calibration even more accurate measurement results with the WaterBoy app
| Parameters | Measuring range | Measuring resolution | Accuracy | Other |
| pH value | -2.00 to 16.00 | 0,01 | ±0.01, ±1 digit | Automatic 1- to 3-point calibration, temperature compensation 0 to 50 °C (automatic) |
| Conductivity | 0 to 20.00 mS/cm | 0.1/1/10 μS/cm | ±1 % F.S | Temperature compensation 0 to 50 °C (automatic) |
| TDS (Total Dissolved Solids) | 0.1 ppm to 10.00 ppt | – | – | TDS factor: 0.40 to 1.00 |
| Salt content | 0 to 10.00 ppt | – | – | – |
| Specific resistance | 50 Ω-cm to 20 MΩ-cm | – | – | – |
| temperature | 0 to 50 °C | 0,1 °C | ±0,5 °C | – |
| Further information | ||||
| Dimension | 40×40×178 mm | |||
| Weight | 133 g | |||
| Further data | Power supply: 4 × AAA batteries Operating time: Up to 1000 hours Housing protection class: IP67 (waterproof and floatable) |
|||

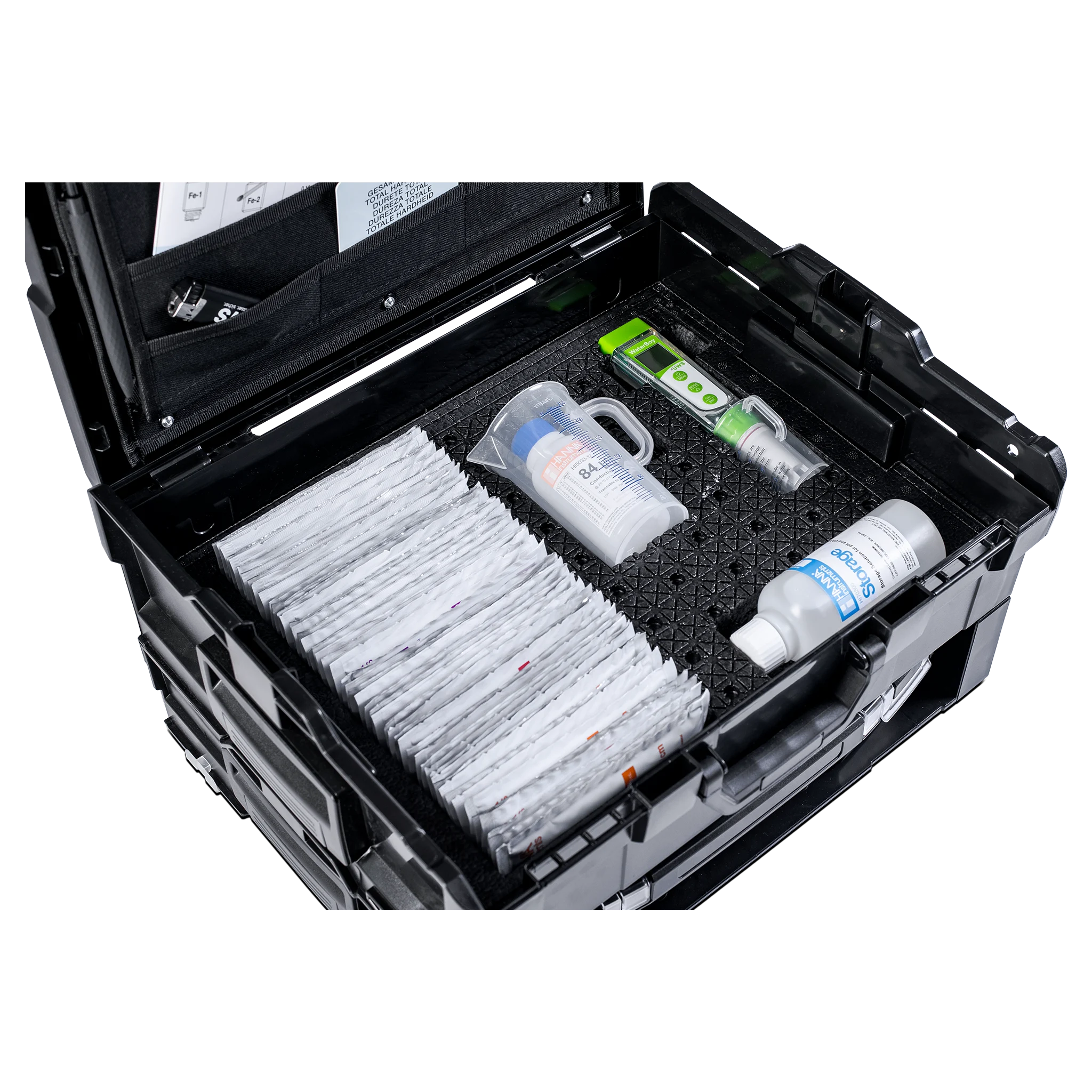

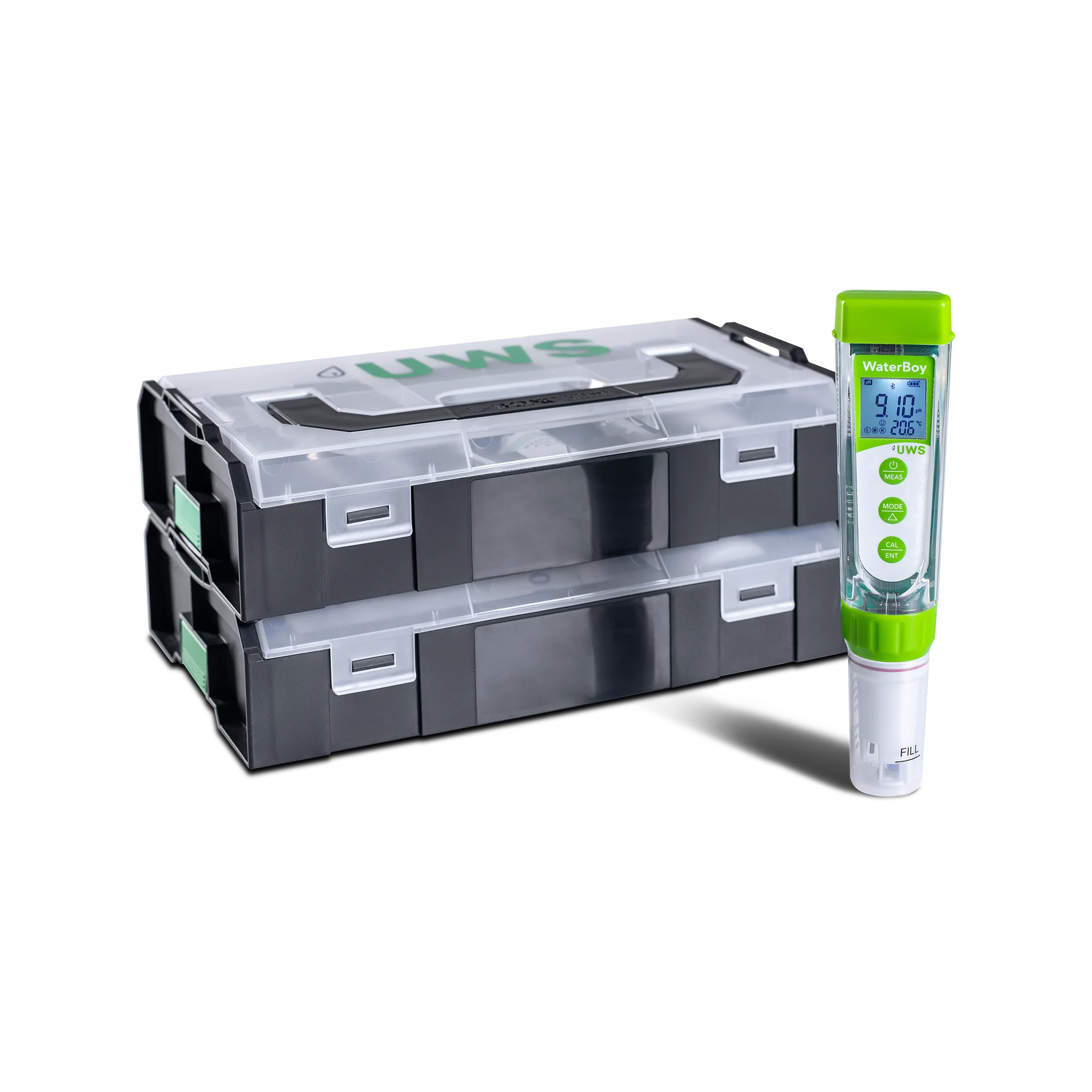

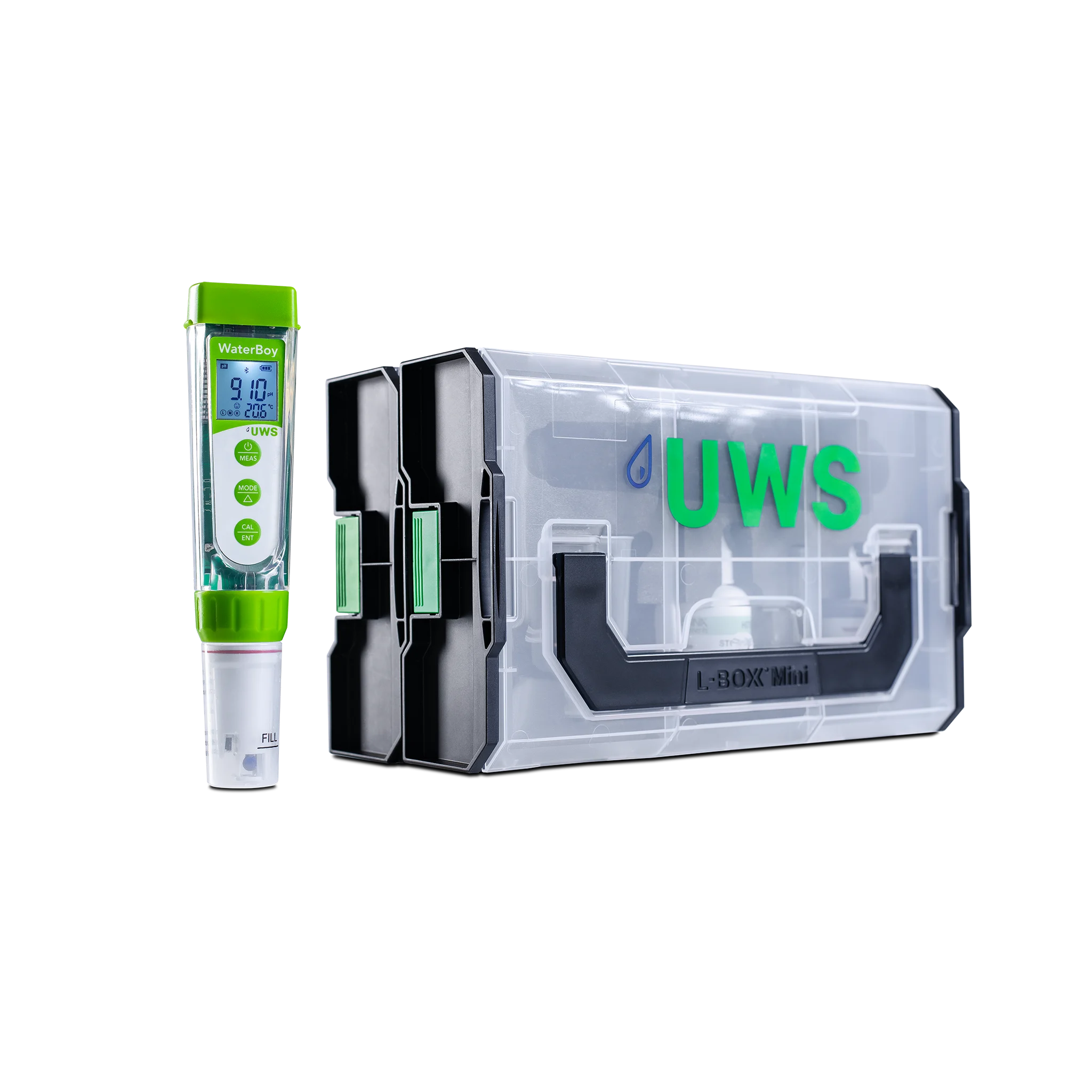

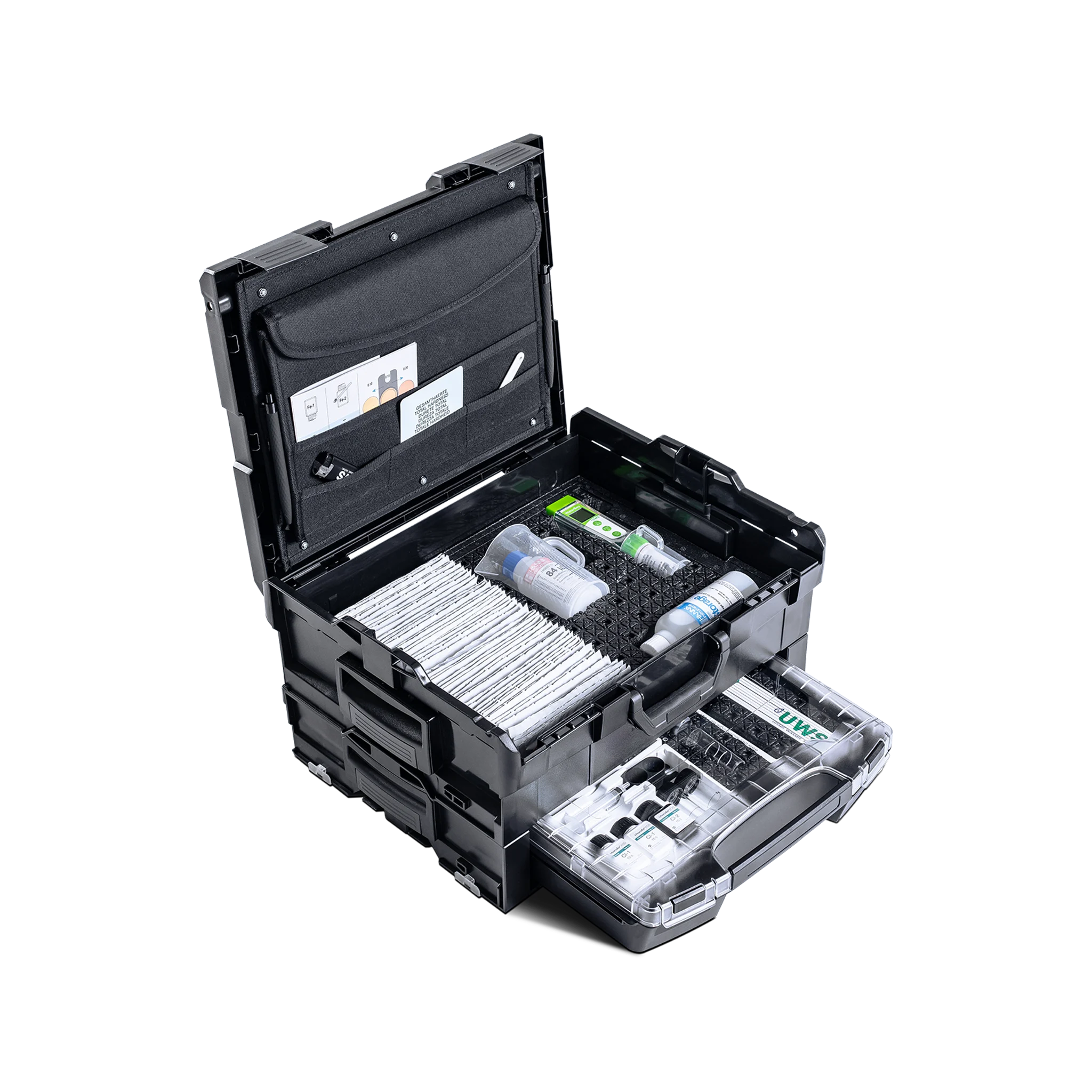

- Box 1
- UWS WaterBoy combination measuring device
- MAGella test stick magnet
- Storage solution for electrodes 25 ml bottle
- Water hardness measuring set
- Measuring cup 50 ml
- Box 2
- Conductivity solution 84µS / cm – 120 ml bottle
- Conductivity solution 1413 µS/cm – 2×20 ml
- Buffer solution pH 10.01 – 2×20 ml
- Buffer solution PH 7 25 – 2×20 ml
- Buffer solution pH 4.01 – 2×20 ml
- Cleaning solution – 1×20 ml
Please carry out a pH value calibration after 5 days at the latest. The conductivity calibration, on the other hand, must be carried out every 14 days at the latest. Regular calibration of measuring devices is essential for accurate measured values. Measuring devices that are not calibrated can lead to considerable deviations and therefore invalid measurement results.
